80ST Flange T Series DC servo motor 0.2-0.4kw

Standard DC servo motor, power range 50~1500w, compatible with the installation size of AC servo motor,and the number of encoder lines 1250 and 2500 can be selected. The servo runs smoothly with outstanding low,speed performance. 1rpm can still run smoothly, and the maximum speed can reach 3800rpm under rated voltage.The servo adopts low-voltage DC 24~72vdc power supply to avoid the impact of large voltage fluctuation or dropon the servo drive circuit, which is conducive to improving the service life of the equipment, closer to the international low-voltage service standard, and higher safety. The servo technology is mature, easy to install and adjust, stable and reliable, and cost-effective.

2、Application characteristics

※ Working voltage：24~72VDC

※ Power：50~1500W Low voltage DC servo motor

※ Rated speed：3000RPM

※ Positioning accuracy：1/5000（1250PPR），1/10000（2500PPR）

※ Up to triple overload

※ Multiple series to choosed

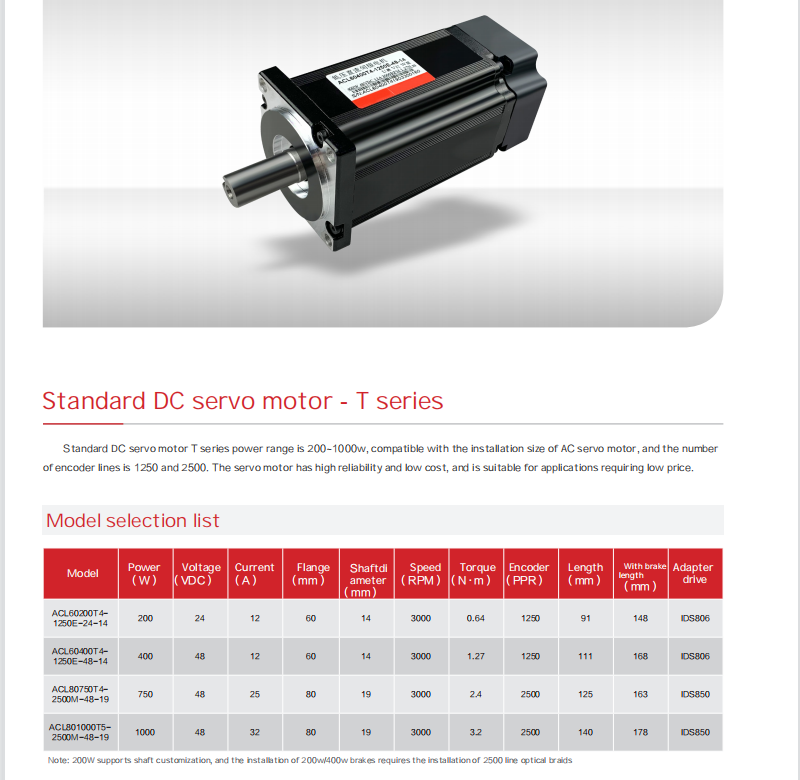

3、Standard DC servo motor T series power range is 200~1000w, compatible with the installation size of AC servo motor, and the numberof encoder lines is 1250 and 2500. The servo motor has high reliability and low cost, and is suitable for applications requiring low price.

Product series:
