1. Product featuress:

PL/PF/AE/AB/AD/VRB Series:

1.Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity;

2.Planetary wheel with full needle design,increase the contact area to improve the rigidity and output torque;

3.The gears are carburized and quenched to the HRC62 with low carbon steel surface for optimum wear and impact toughness;

4.Gears refer to forengn imported software-assisted design to obtain the best tooth shape to reduce noise;

5.The input terminal is connected to the motor shaft in a double-tight manner to obtain the maximum clamping force and sero backlash power transmission.

2. Technical indexes :

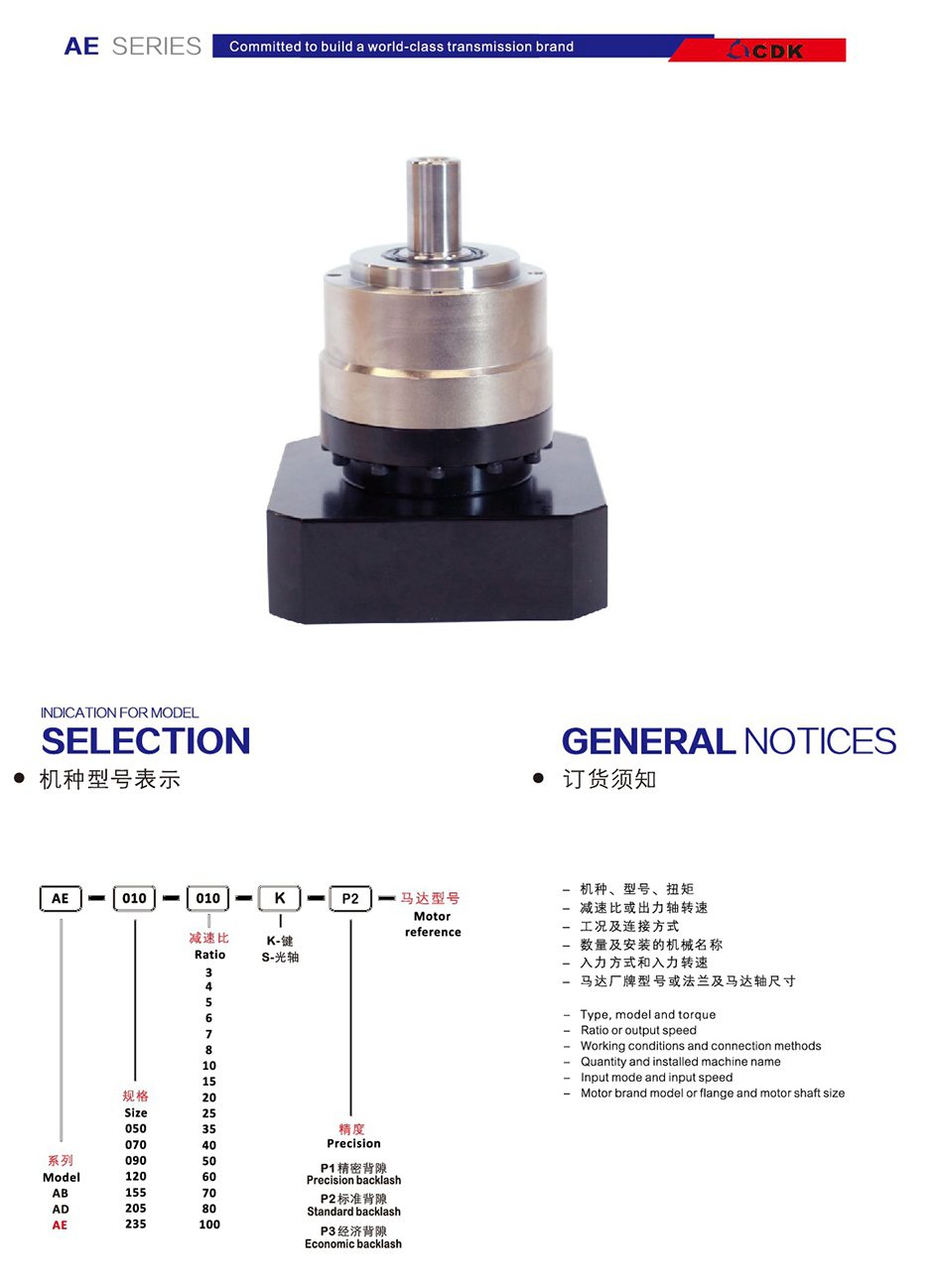

1、AE series:

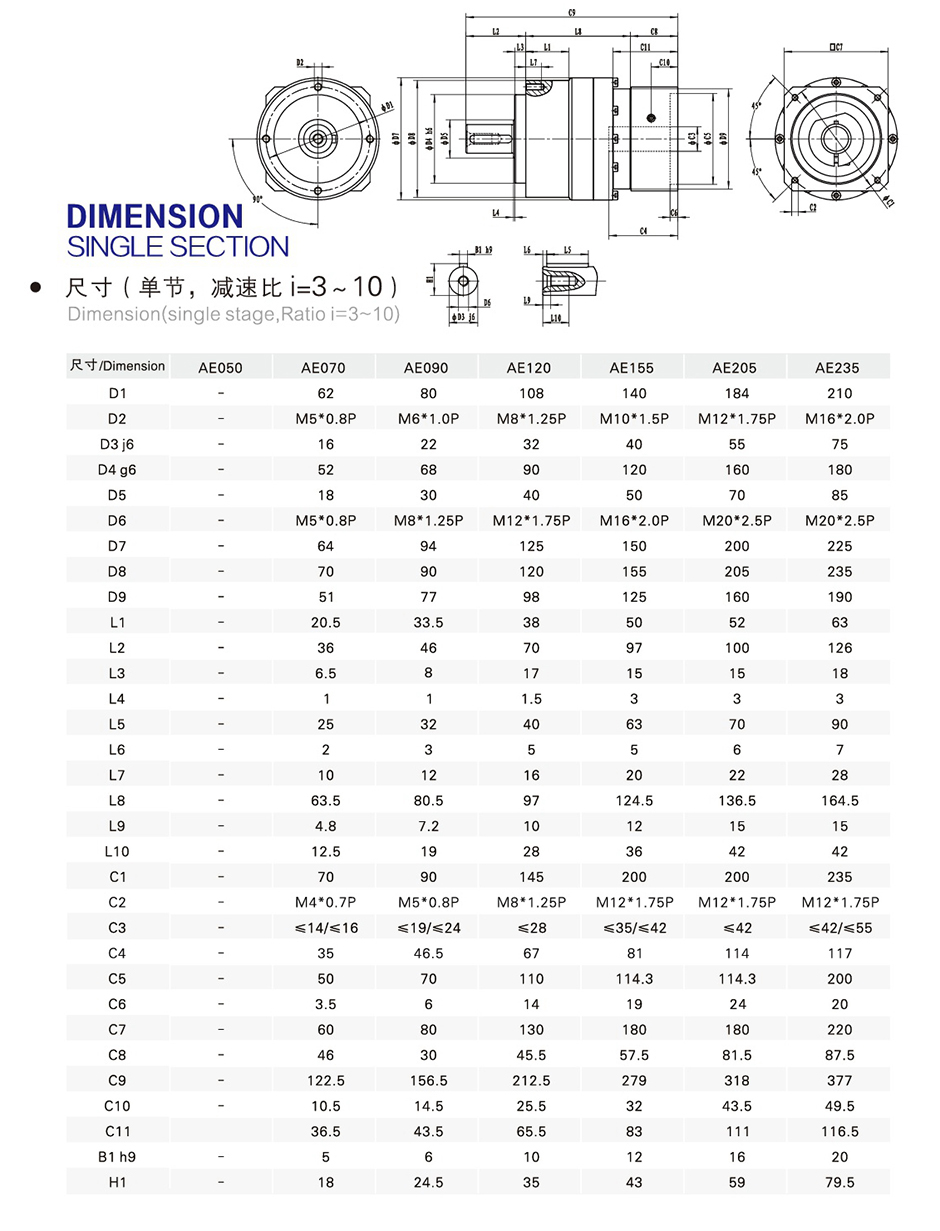

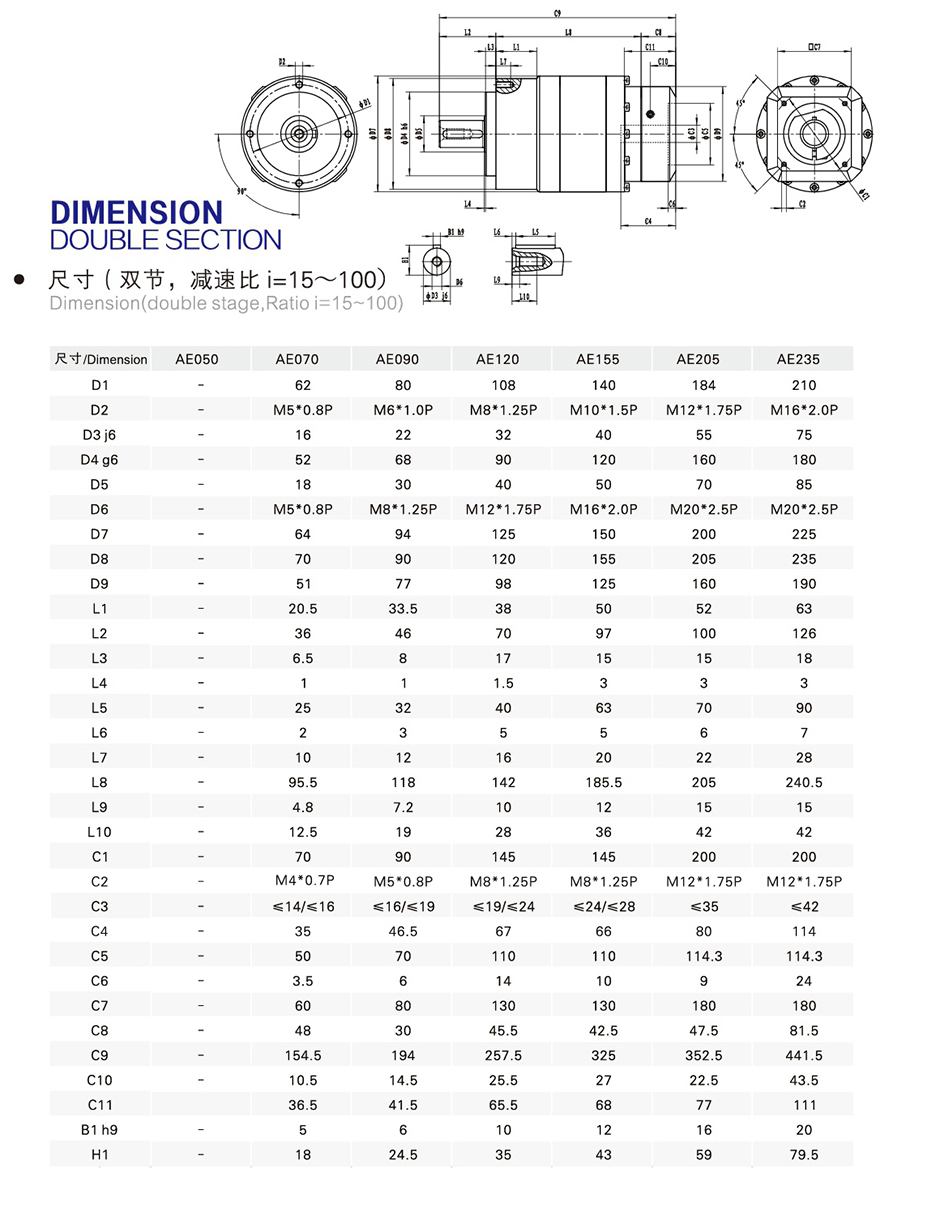

Flange dimensions :AE050 & AE070 & AE090 & AE120 & AE155 & AE205 & AE235

Product description :

Helical planetary reducer

Factory Direct

Circular flange output

High-precision

High torque

Good transmission stability

Low noise

Long life

Match any brand of motor

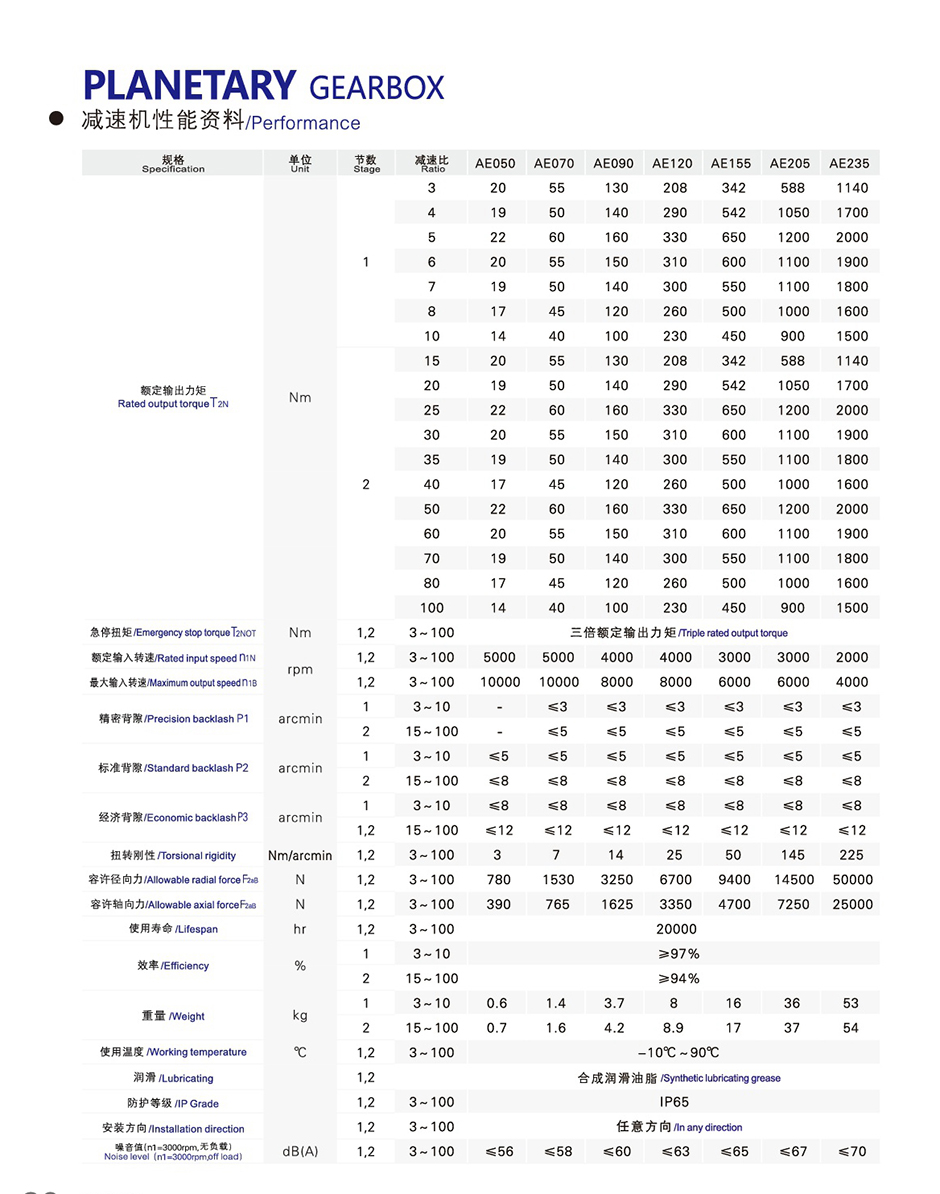

3. Product characteristics :

Ratio: Single tage, i=3-10  & Double stage, i=15-100

Efficiency:  Single tage,  ≧97,&  Double stage,≧94

Precision Backlash: Single tage,P1≦3  ,Double stage,P1≦5

Standard Backlash:Single tage,P2≦5  ,Double stage,P2≦8

Economic Backlash:Single tage,P3≦8  ,Double stage,P3≦12

Installation form:Vertical installation

Emergency stop torque: Triple rated output torque

Lifespan: 20000hr

Working temperature: -10℃-90℃

IP Grade: IP65
