China New Product Servo Motor For Laser Equipment - 130ST Flange servo motor 1.0-3.9kw(3) – Xulong Detail:

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

LB Series ac servo motor

Frame size-mm: 80.110.130.150

Rated torque -NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed -RPM :1500.2000.2500.3000

Maximum speed-RPM : /

number of pole-pairs: 4

The feedback element: Incremental Encoder 2500C/T

Electric brake: can match

Fit drive working voltage -VAC: 220

LBB Series ac servo motors

Frame size-mm: 80,110,?130,?150

Rated torque-NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed-RPM:1500.2000.2500.3000

Maximum speed-RPM:/

number of pole-pairs: 4

The feedback element:Absolute photoelectric encoder 17bit

Electric brake: can match

Fit drive working voltage -VAC:220

Motor type:

220V LB Series ac servo motor- 2500C/T incremental encoder

130ST-M04025LFB 220V 1.0KW 4A 4.0NM 2500RPM

130ST-M05025LFB 220V 1.0KW 5A 5.0NM 2000RPM

130ST-M06025LFB 220V 1.5KW 6A 6Nm 2500RPM

130ST-M07720LFB 220V 1.6KW 6A 7.7NM 2000RPM

130ST-M07725LFB 220V 2.0KW 7.5A 7.7NM 2500RPM

130ST-M07730LFB 220V 2.4KW 9A 7.7NM 3000RPM

130ST-M10015LFB 220V 1.5KW 6A 10NM 1500RPM

130ST-M10025LFB 220V 2.6KW 10A 10NM 2500RPM

130ST-M15015LFB 220V 2.3KW 9.5A 15NM 1500RPM

130ST-M15025LFB 220V 3.8KW 17A 15NM 2500RPM

220V LBB Series ac servo motor- 17bit absolute value encoder

130ST-M04025LMBB 220V 1.0KW 4A 4.0NM 2500RPM

130ST-M05025LMBB 220V 1.0KW 5A 5.0NM 2000RPM

130ST-M06025LMBB 220V 1.5KW 6A 6Nm 2500RPM

130ST-M07720LMBB 220V 1.6KW 6A 7.7NM 2000RPM

130ST-M07725LMBB 220V 2.0KW 7.5A 7.7NM 2500RPM

130ST-M07730LMBB 220V 2.4KW 9A 7.7NM 3000RPM

130ST-M10015LMBB 220V 1.5KW 6A 10NM 1500RPM

130ST-M10025LMBB 220V 2.6KW 10A 10NM 2500RPM

130ST-M15015LMBB 220V 2.3KW 9.5A 15NM 1500RPM

130ST-M15025LMBB 220V 3.8KW 17A 15NM 2500RPM

Application of servo motor:

Servo motor for production line

Servo motor for lithium battery equipment

Servo motor for battery equipment

Servo motor for glass machinery

Servo motor for high speed press

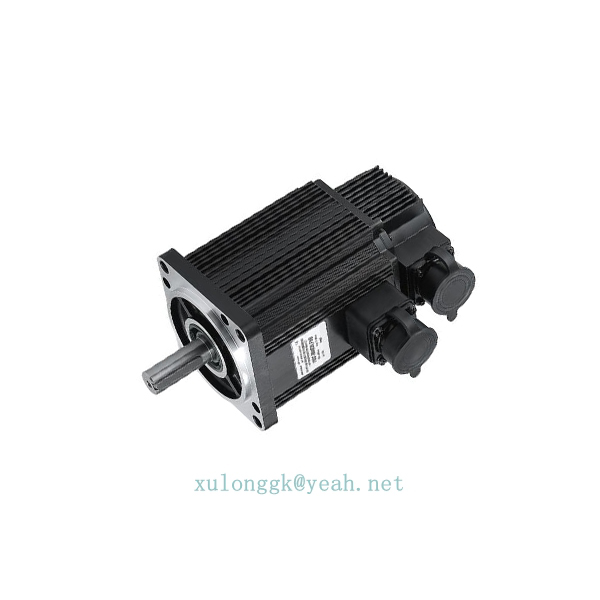

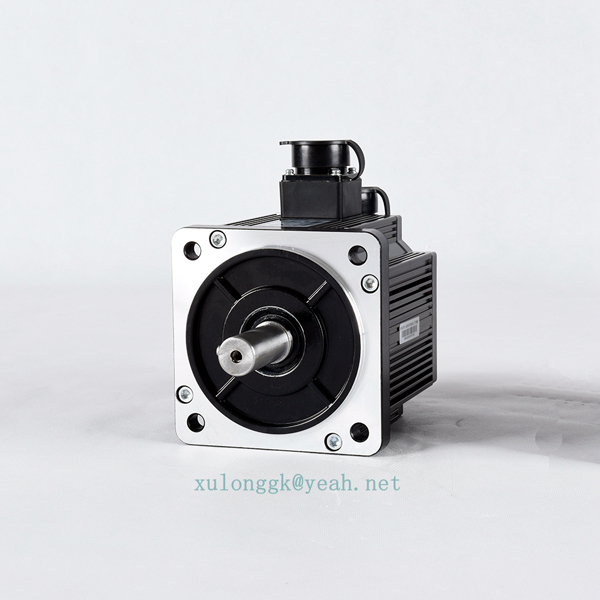

Product detail pictures:
