JHY2200 Mechanical All-in-One
Short Description:
JHY2200 Mechanical All-in-One
JHY2200 Mechanical All-in-One
Product Overview
The JHY series mechanical oil mist purifier is aneconomical and efficjent machining oilmist purification equipment. lt provides threecorresponding filtration solutions for threedifferent lubricating media: water-solublecoolant, cutting oil, and the most difficult-to.filter oil mist.
Latest Technology
The JHY series uses the latest SynteqXP filter mediatechnology, The filter media structure design canimprove the filtration efficiency and oil emissioncapacity, and has the characteristics of low pressuredrop and long service life. The operation of the wholemachine is simple, and the maintenance andreplacement are convenient
Product Features
Modular combination, large airflow, special designed filter cartridges, super long service life, maintain effective and stable operation of the equipment

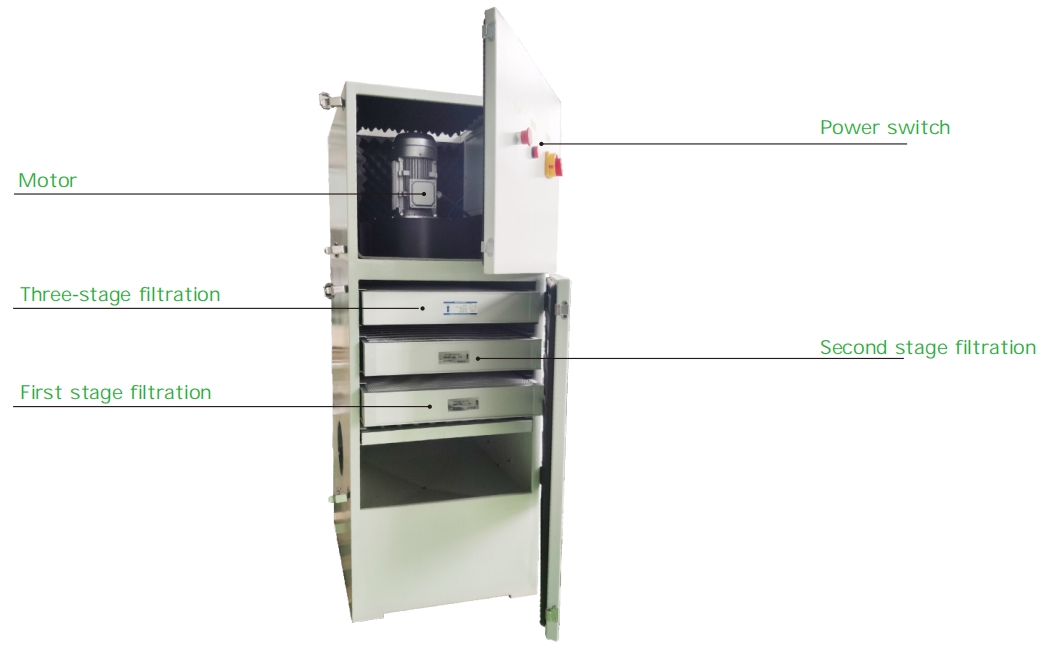

Working Principle
*Metal plate pre-filter, to remove large particle debris and oil mist
*First stage high-efficiency filter intercepts 1-30um oil mistparticles
*Second stage medium-efficiency filter cartridge intercepts 0.3-1umoil mist particles
*Third stage high-efficiency filter cartridge intercepts fine oil mist particles of 0.3um and below
*Clean gas discharged

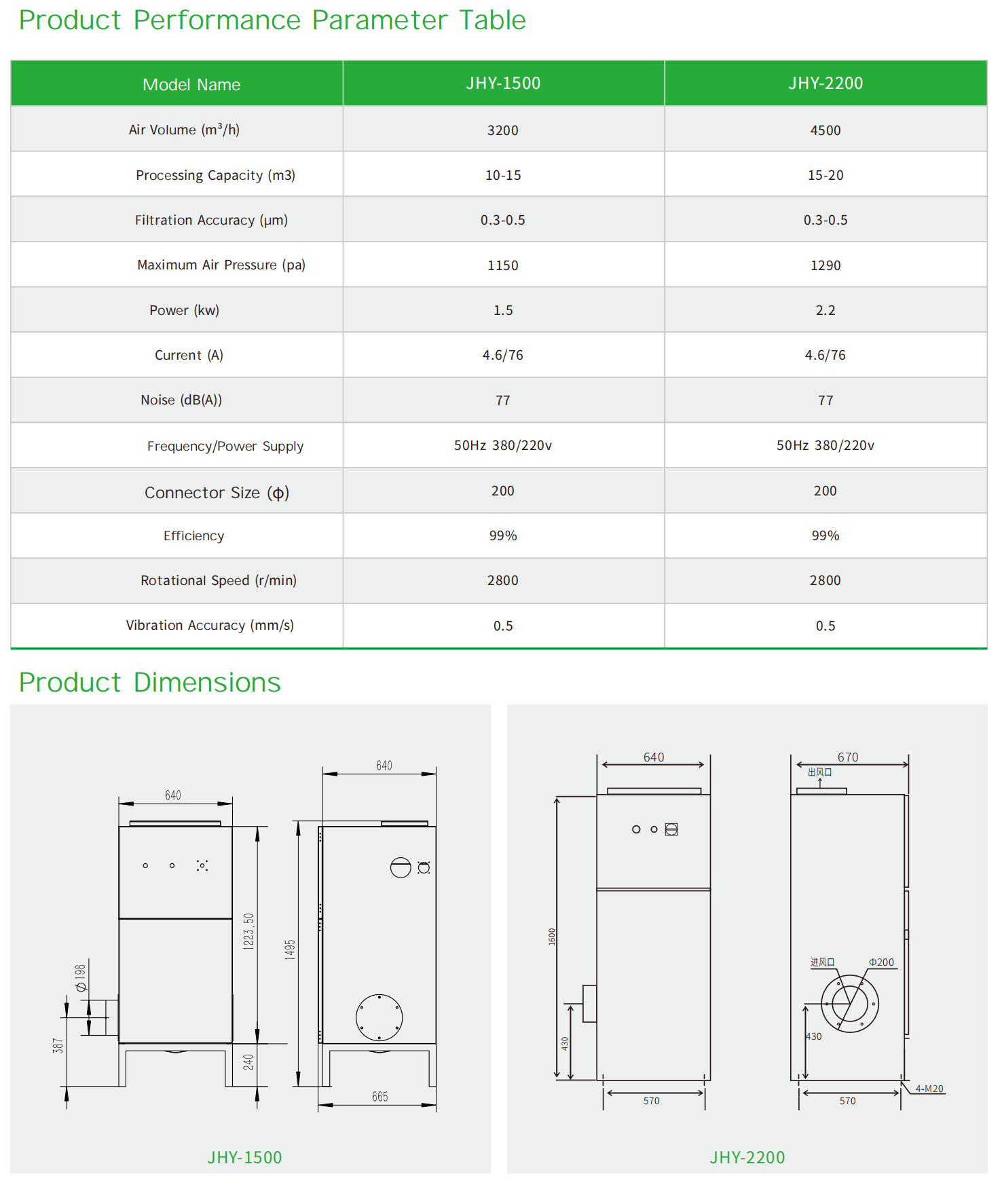

Product Dimensions
Application Cases
