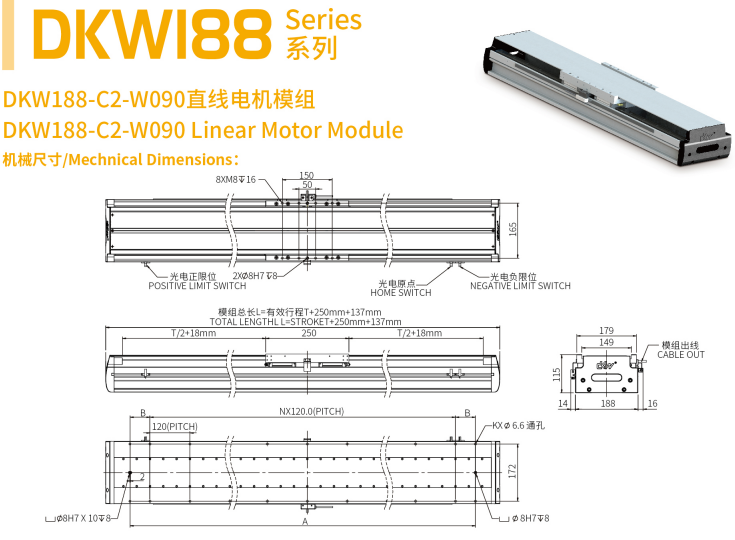

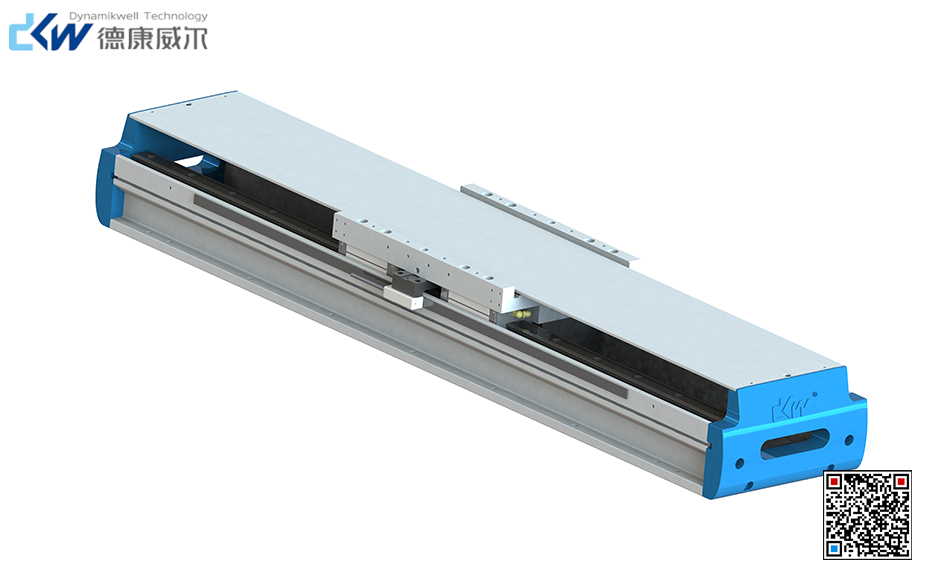

DKW188-C2-W090 Linear Motor Module
Short Description:
Self-developed and designed, it has the advantages of high thrust, high speed, high acceleration, high precision, long stroke, multi-Mover application, etc. The full range of products of linear motor and standard module can be equipped with drivers from Panasonic, Mitsubishi and other brands.
Product features: independent research and development design, manufacturing linear motor stator;
Product advantages: high thrust, high speed, high acceleration, high precision, long stroke, multi-Mover application;
Application: It has been widely used in laser, semiconductor, panel industry, 3C mobile phone equipment industry, lithium battery industry, clothing industry, photovoltaic industry and so on.
DKM series: linear motor with iron core
DKW88 series：DKW88-B15-W040,DKW88-B2-W040
DKW119 series：DKW119-C15-W060,DKW119-C2-W060,DKW119-C3-W060
DKW120 series：DKW120-B15-W060,DKW120-B2-W060,DKW120-B3-W060
DKW168 series：DKW168-C2-W090,DKW168-C3-W090
DKW188 series：DKW188-C2-W090,DKW188-C3-W090

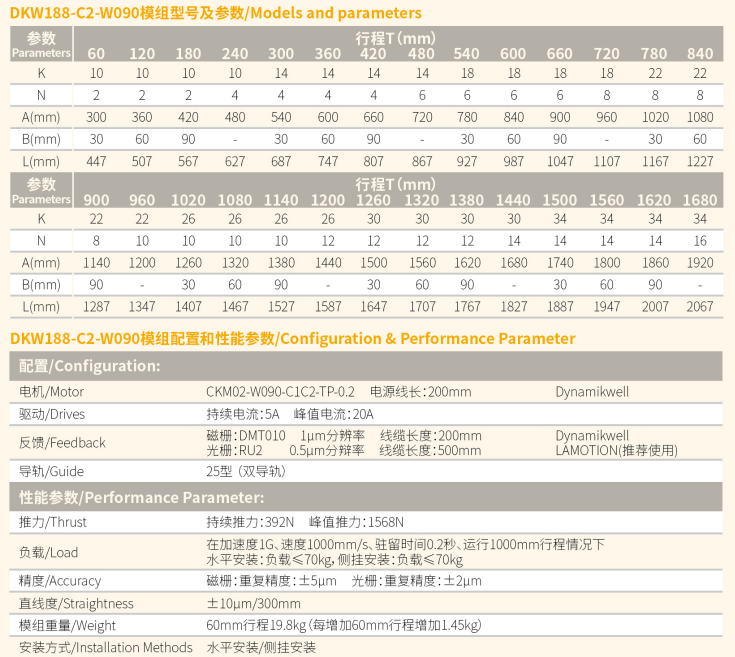

DKW188-C2-W090 Application characteristics:
1. Non-standard linear motor modules, various single-drive gantry, double-drive gantry, marble gantry, etc. can be customized according to customer requirements;
2. Non-standard customized application platform and multi-Mover application design can be developed and designed according to customer application scenarios.
