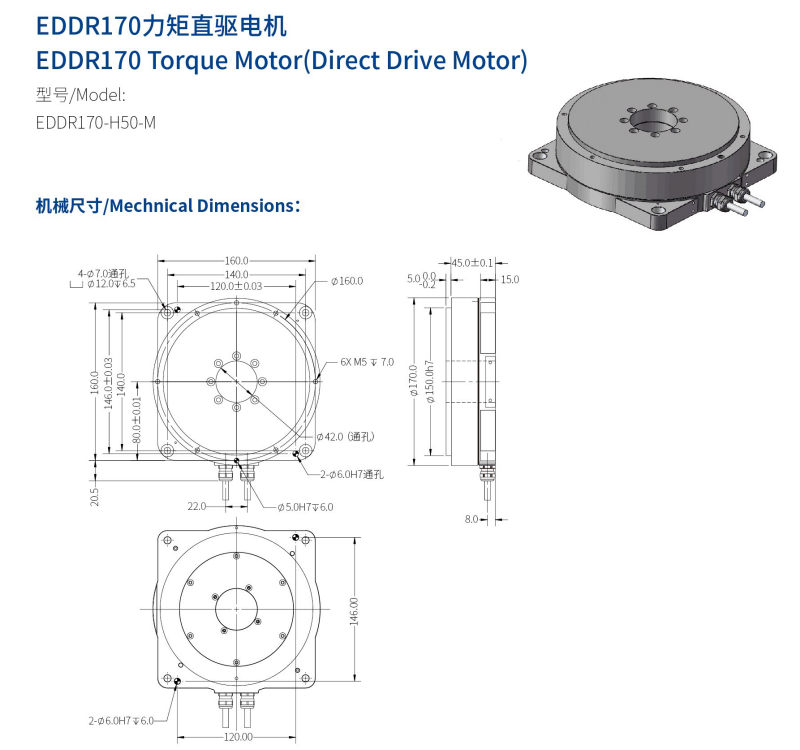

EDDR170-H50-M Torque Motor(direct drive motor)
Short Description:
Dynamikwll Company mainly develops and produces high-tech precision mechanical and electrical products such as direct driver, precision direct-drive motion platform and high-end automation equipment.

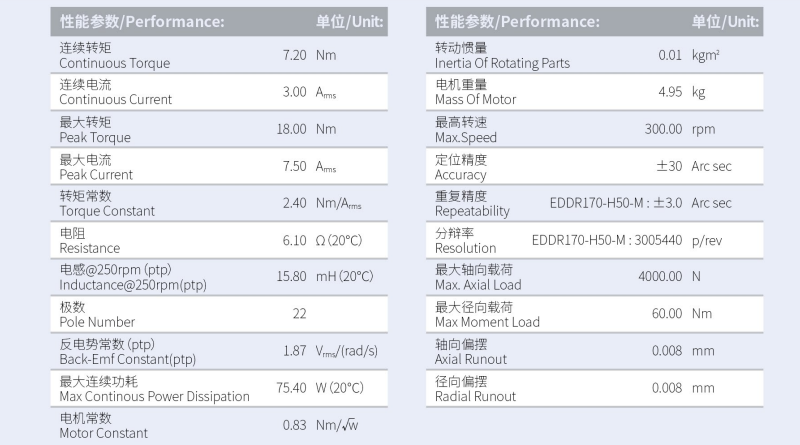

EDDR170-H50-M Torque Motor Performance:
※ Continuous Torque:7.2Nm
※Continuous Current:3 A
※ Peak Torque:18Nm
※PeakCurrent:7.5 A
※ Torque Constant:2.4 Nm/A
※ Pole Number:22
※ Max Continous Power Dissipation:75.4W
※ Max Speed:300 rpm
※Accuracy:±30 Arc
