Fixed Competitive Price Ms Plug – 150ST Flange servo motor 3.8-5.5kw – Xulong Detail:

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

LB Series ac servo motor

Frame size-mm: 80.110.130.150

Rated torque -NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed -RPM :1500.2000.2500.3000

Maximum speed-RPM : /

number of pole-pairs: 4

The feedback element: Incremental Encoder 2500C/T

Electric brake: can match

Fit drive working voltage -VAC: 220

LBB Series ac servo motors

Frame size-mm: 80,110,?130,?150

Rated torque-NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed-RPM:1500.2000.2500.3000

Maximum speed-RPM:/

number of pole-pairs: 4

The feedback element:Absolute photoelectric encoder 17bit

Electric brake: can match

Fit drive working voltage -VAC:220

Motor type:

220V LB Series ac servo motor- 2500C/T incremental encoder

150ST-M15025LFB 220V 3.8KW 16.5A 15NM 2500RPM

150ST-M18020LFB 220V 3.6KW 16.5A 18NM 2000RPM

150ST-M23020LFB 220V 4.7KW 20.5A 23NM 2000RPM

150ST-M27020LFB 220V 5.5KW 20.5A 27NM 2000RPM

220V LBB Series ac servo motor- 17bit absolute value encoder

150ST-M15025LMBB 220V 3.8KW 16.5A 15NM 2500RPM

150ST-M18020LMBB 220V 3.6KW 16.5A 18NM 2000RPM

150ST-M23020LMBB 220V 4.7KW 20.5A 23NM 2000RPM

150ST-M27020LMBB 220V 5.5KW 20.5A 27NM 2000RPM

Application of servo motor:

Servo motor for blister equipment

Servo motor for carving and milling machine

Servo motor for engraving machine

Servo motor for milling machine

Servo motor for grinder

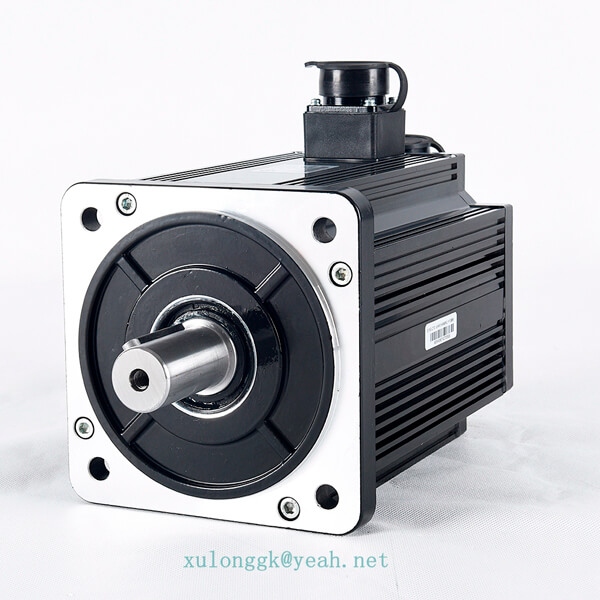

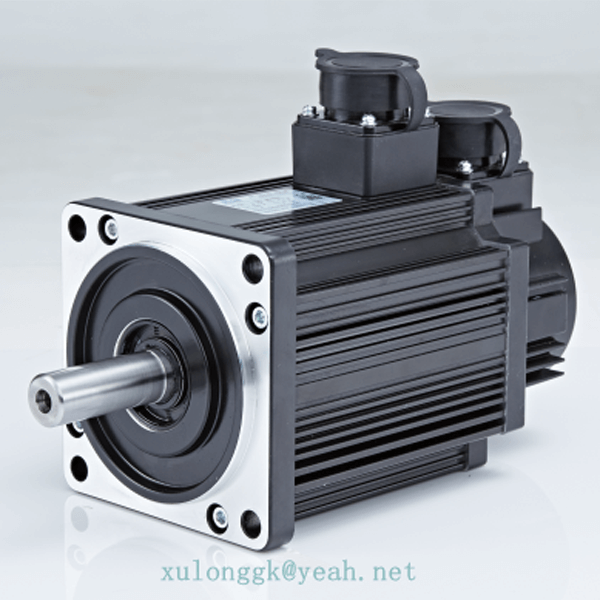

Product detail pictures:
