G-2-2 Closed loop stepping driver 2LS860H
Short Description:

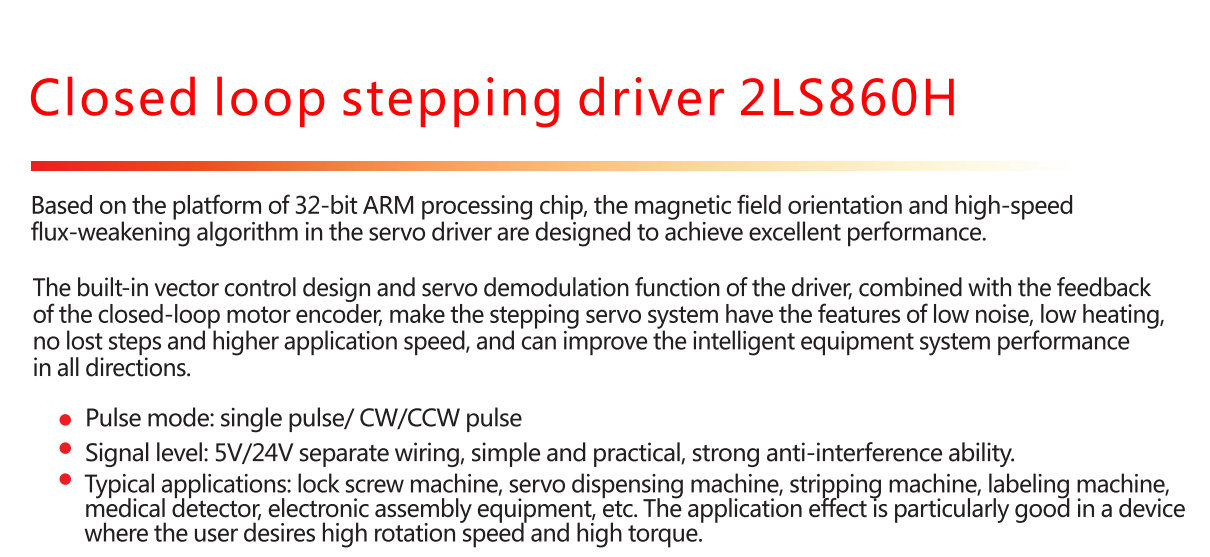

Based on the platform of 32-bit ARM processing chip, the magnetic field orientation and high-speed flux-weakening algorithm in the servo driver are designed to achieve excellent performance. The built-in vector control design and servo demodulation function of the driver, combined with the feedback of the closed-loop motor encoder , make the stepping servo system have the features of low noise , low heating no lost steps and higher application speed, and can improve the intelligent equipment system performance in all directions.

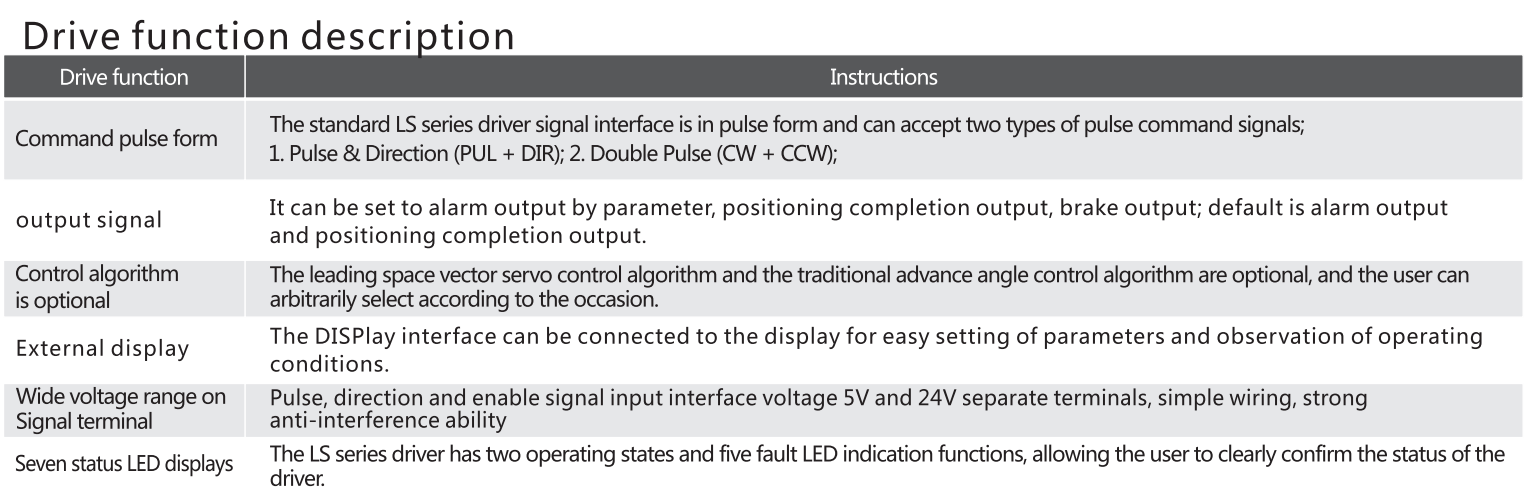

.Pulse mode:single pulse/CW/CCW pulse
·Signal level: 5V/24V separate wiring, simple and practical, strong anti-interference ability.
.Typical applications : lock screw machine , servo dispensing machine , stripping machine , labeling machine medical detector , electronic assembly equipment , etc . The application effect is particularly good in a device where the user desires high rotation speed and high torque.

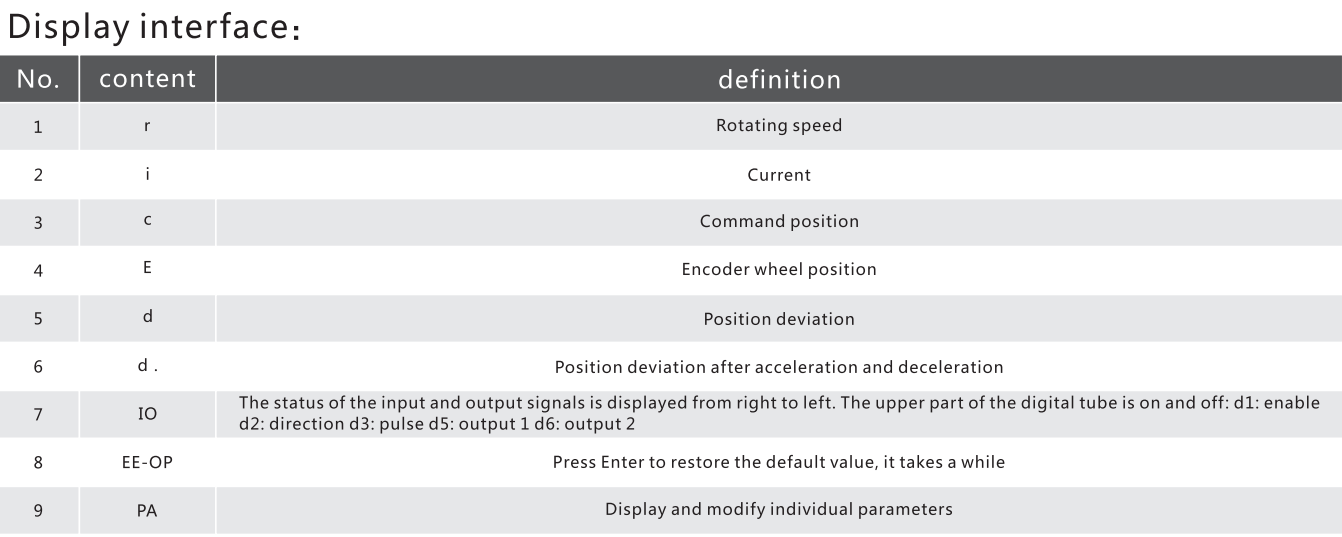

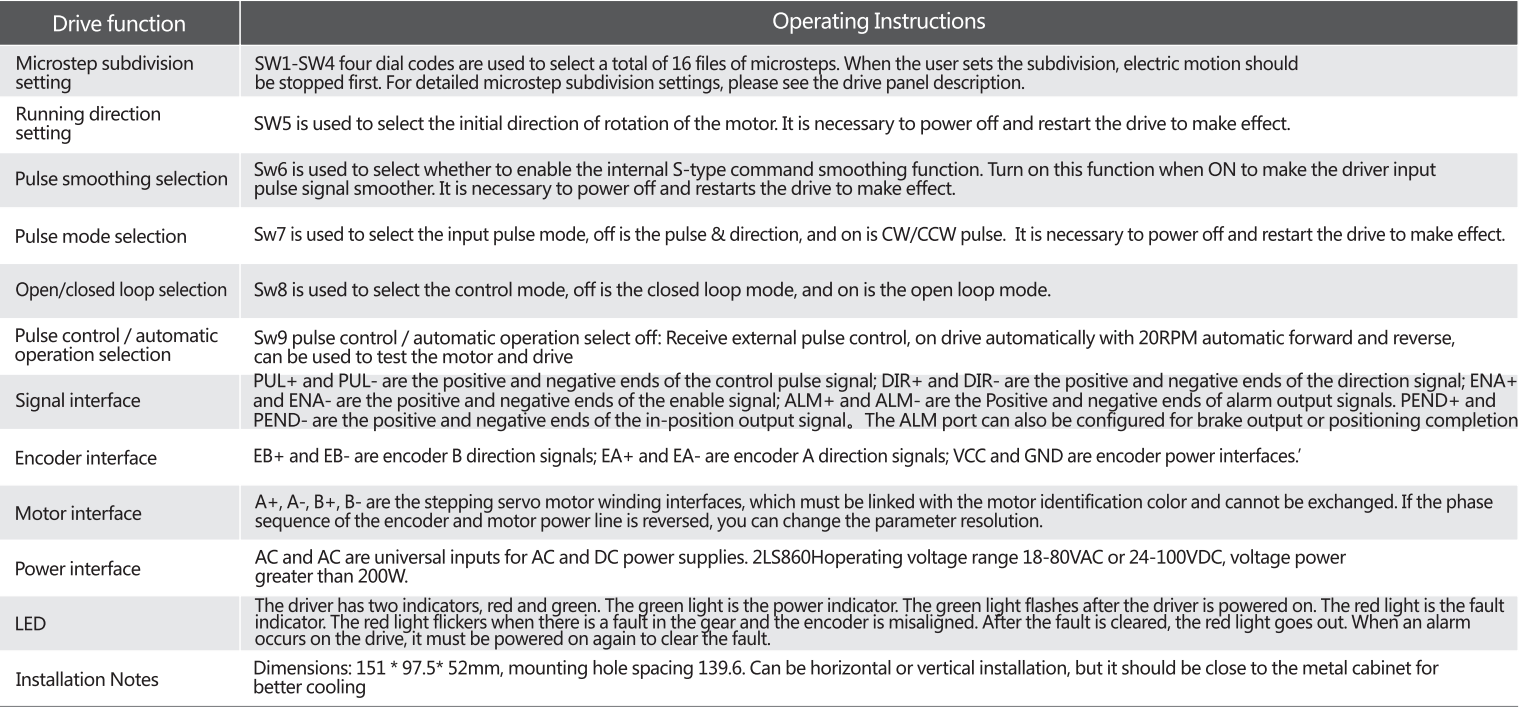

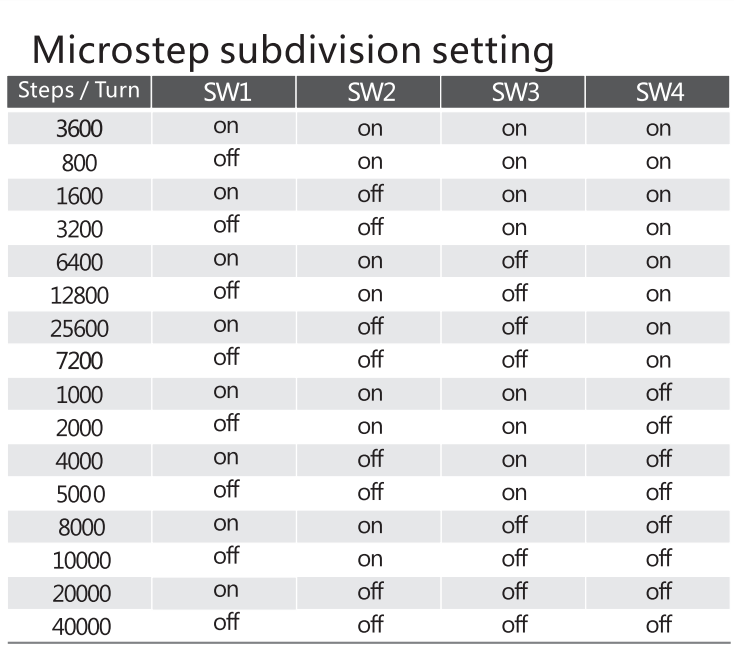

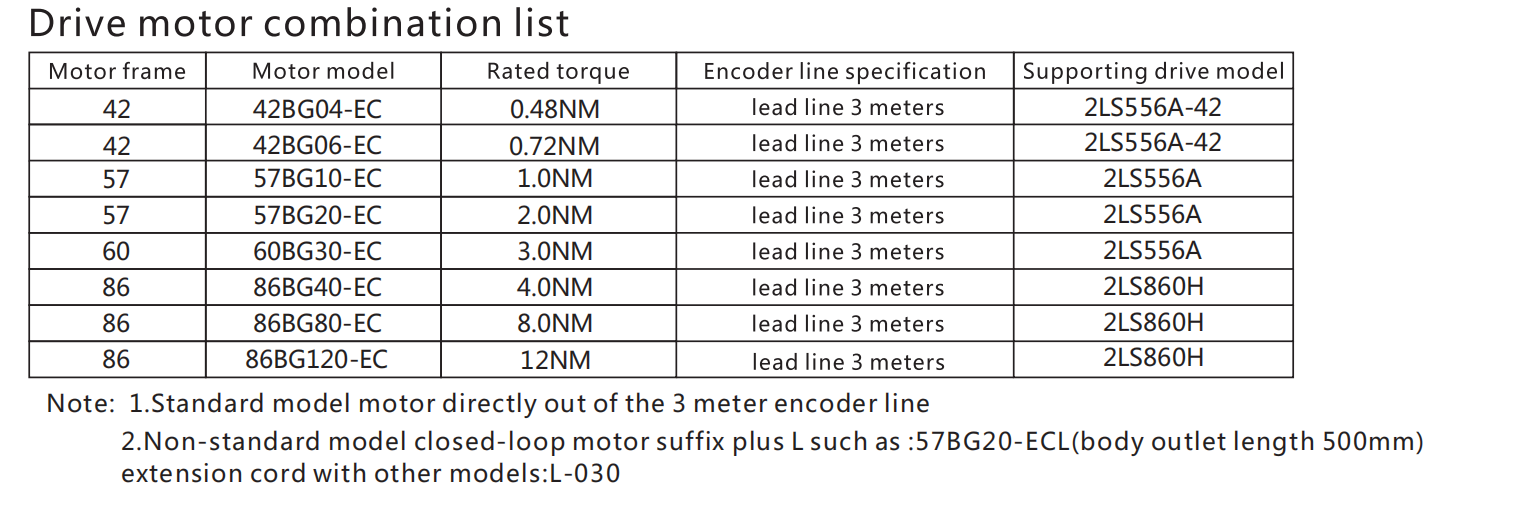

List of closed-loop stepping drive and motor
Step motor flange |
Stepper motor model |
Rated torque NM |
Encoder line specification |
Step drive model |
42 |
42BG04-EC |
0.48 |
3M |
2LS556A-42 |
42 |
42BG06-EC |
0.72 |
3M |
2LS556A-42 |
57 |
57BG10-EC |
1 |
3M |
2LS556A |
57 |
57BG20-EC |
2 |
3M |
2LS556A |
60 |
60BG30-EC |
3 |
3M |
2LS556A |
86 |
86BG40-EC |
4 |
3M |
2LS860H |
86 |
86BG80-EC |
8 |
3M |
2LS860H |
86 |
86BG120-EC |
12 |
3M |
2LS860H |
