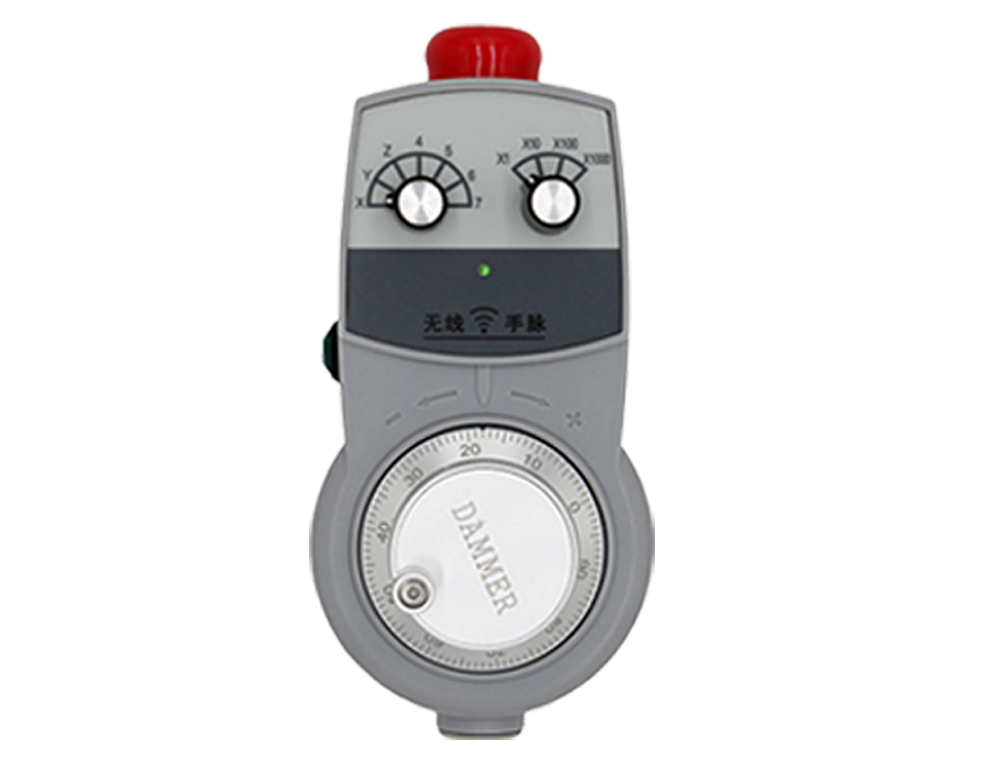

Hand-held MPG SA Series

This product is a hand-operated pulse generator used in CNC machine tools.
This product adopts wireless transmission technology, which saves the traditional spring wire connection, reduces equipment failures caused by cables, avoids cable dragging, oil sticking and other pollution, and is more convenient to operate. When the operator holds the handwheel, he can get rid of the connection constraint of the spring wire and walk freely. For large-scale gantry milling, CNC lathes, walking lathes, cutting and so on, it brings great convenience and improves work efficiency.

Hand-held MPG SA Series

Product model: SA

Product size: 86*175mm

Voltage：5V-24V

Output Pulse：25/100

Working Temperature：0～45℃

Protection Class：IP65

Product features:

◆3.7v rechargeable lithium battery with low power consumption design, energy saving, environmental protection and random charging;

◆ Using 433M wireless transmission technology, data encryption transmission, stability and reliability, strong anti-interference, will not cause misoperation of machine tools;

◆ The wireless transmission distance is 100m (open), which is stable and reliable;

◆ The corresponding speed is fast, and the signal transmission and reception can be completed within 1ms;

◆ Low-voltage alarm function, standby automatically enters sleep mode;

◆ Adopt alloy encoder with stable and reliable performance; Good hand feel and clear tooth position;

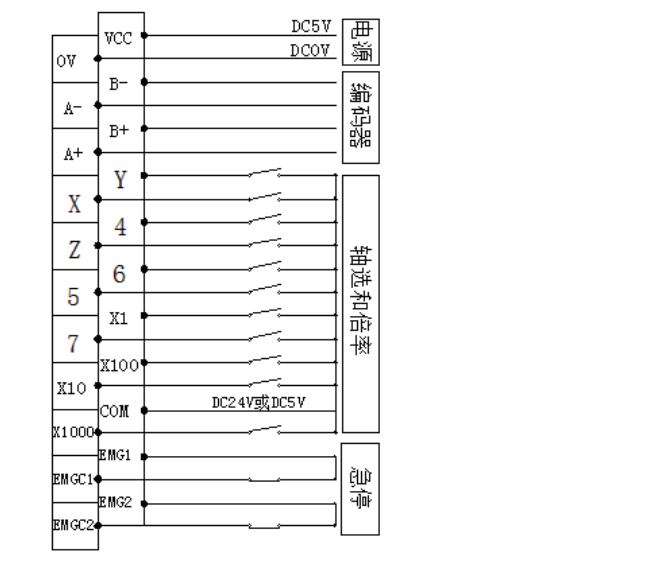

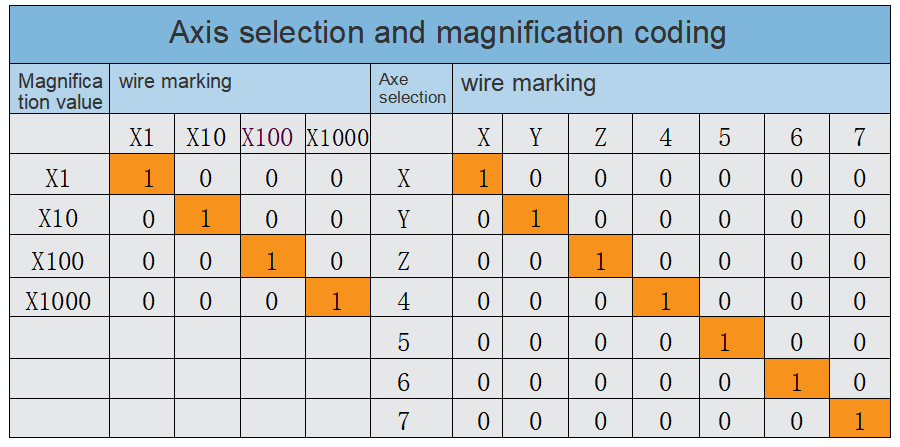

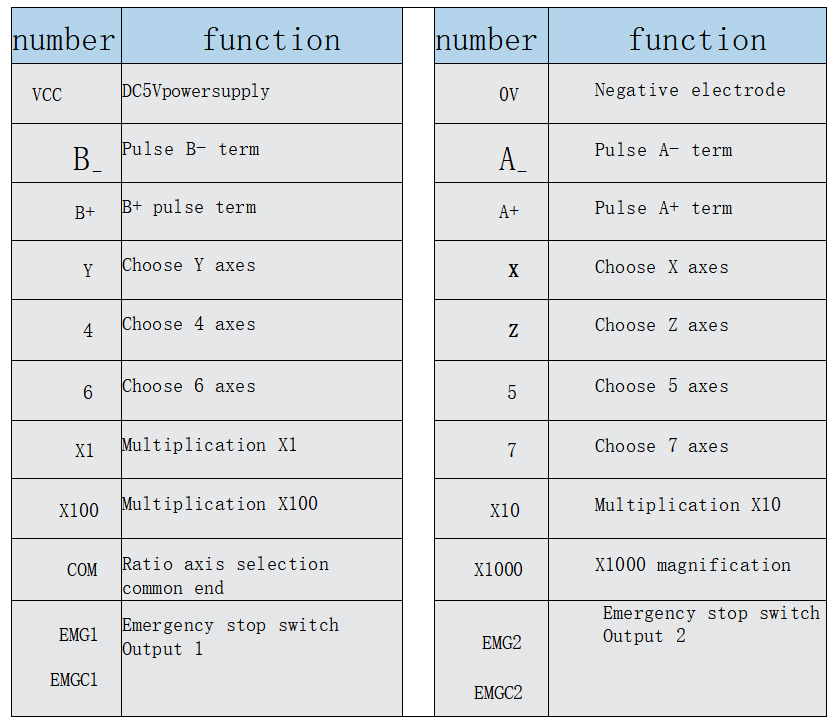

◆ With emergency stop, enable, axis selection (max. 7 axes), magnification function.

Support system:

Siemens, Mitsubishi, Fanuc, guangzhou cnc, Taiwan Province New Generation, Renake and other systems.
