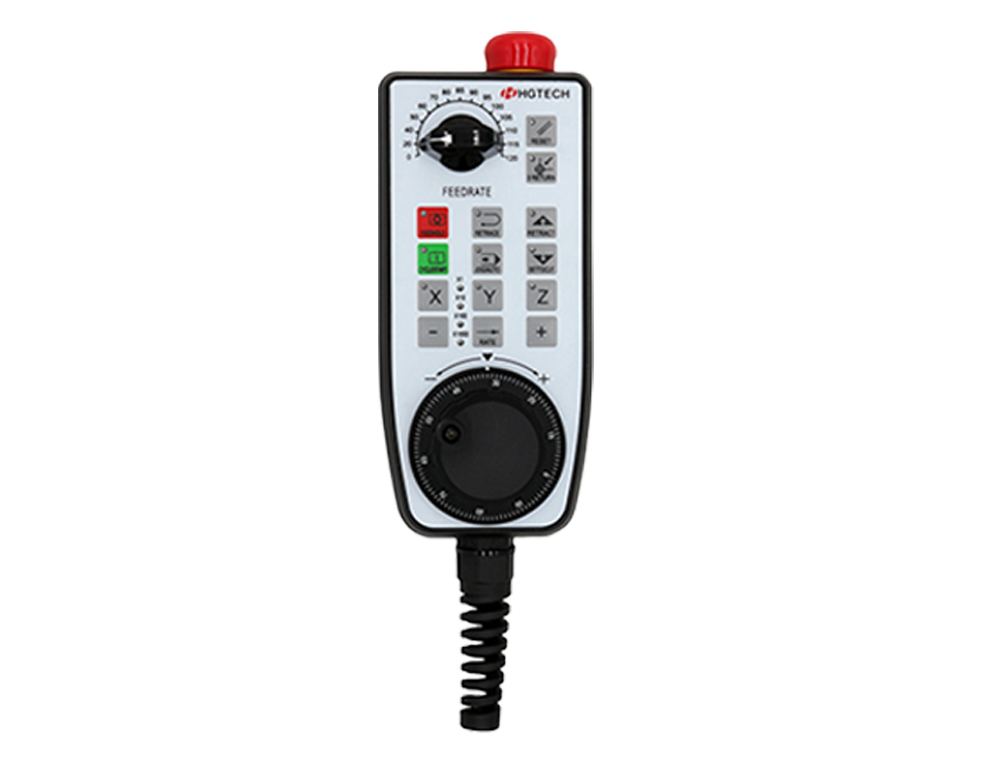

Hand-held MPG SCH Series
Short Description:
Hand-held pulse generator is mainly used for setting the working origin of teaching CNC machine tools and various automation equipment, manual step-by-step fine-tuning, interrupt insertion and other actions in processing.
Hand-held pulse generator is mainly used for setting the working origin of teaching CNC machine tools and various automation equipment, manual step-by-step fine-tuning, interrupt insertion and other actions in processing. Among them, the band switch is used to select the axis and magnification, and the pulse generator is used to send out pulses, which is convenient for system acquisition.
SCH series handheld pulse generator
Type: SCH
Product size: 84*182mm
Voltage：5V-24V
Output Pulse：25/100
Working Temperature：0～45℃
Protection Class：IP65

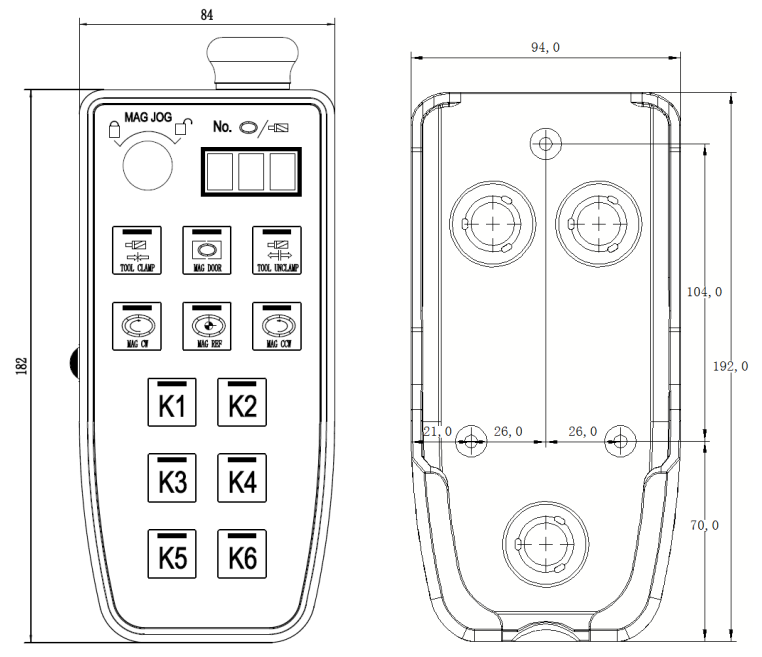

Dimensions:
