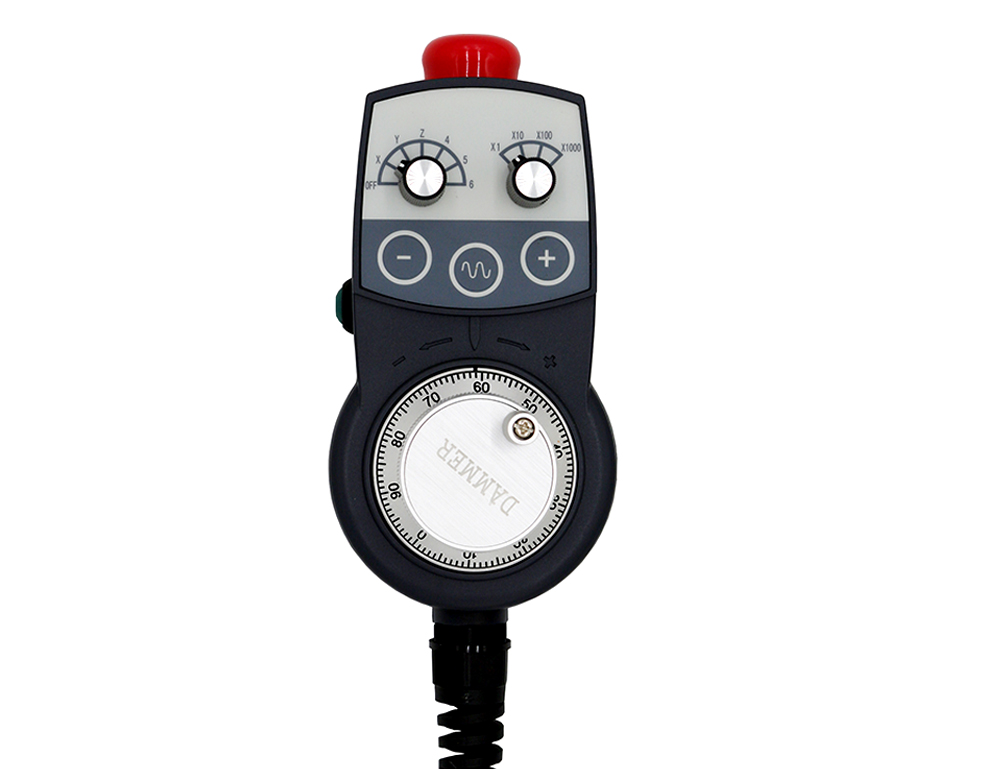

Hand-held MPG SE Series
Short Description:
The hand-held pulse generator is mainly used for the setting of the teaching cnc mechanical working origin in the numerical control machine tool and various automation equipments, the stepwise fine adjustment of the manual mode, and the interrupt insertion in the processing.
The hand-held pulse generator is mainly used for the setting of the teaching cnc mechanical working origin in the numerical control machine tool and various automation equipments, the stepwise fine adjustment of the manual mode, and the interrupt insertion in the processing.The band switch is used for the selection of the axis and the magnification, and the pulse generator is used for the pulse to facilitate the acquisition of the system.
Hand-held MPG SE Series
Product model：SE

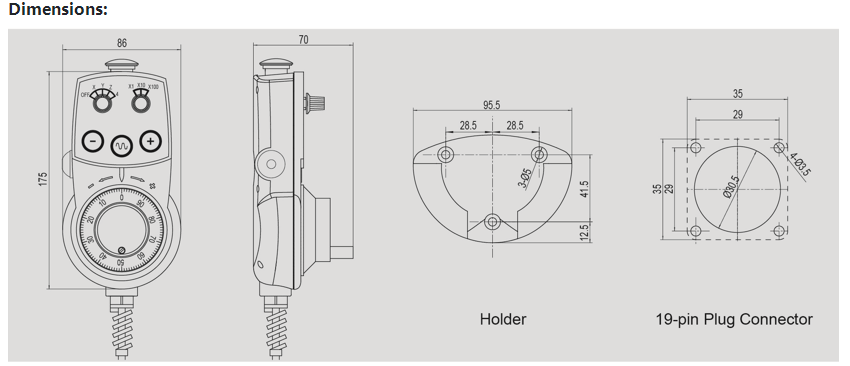

Product size：86*175mm
Voltage：5V-10V
Output Pulse：25/100
Working Temperature：0～45℃
Protection Class：IP65
