One of Hottest for Servo Motor For Engraving Machine - 60ST Flange servo motor 0.1-0.55kw – Xulong Detail:

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

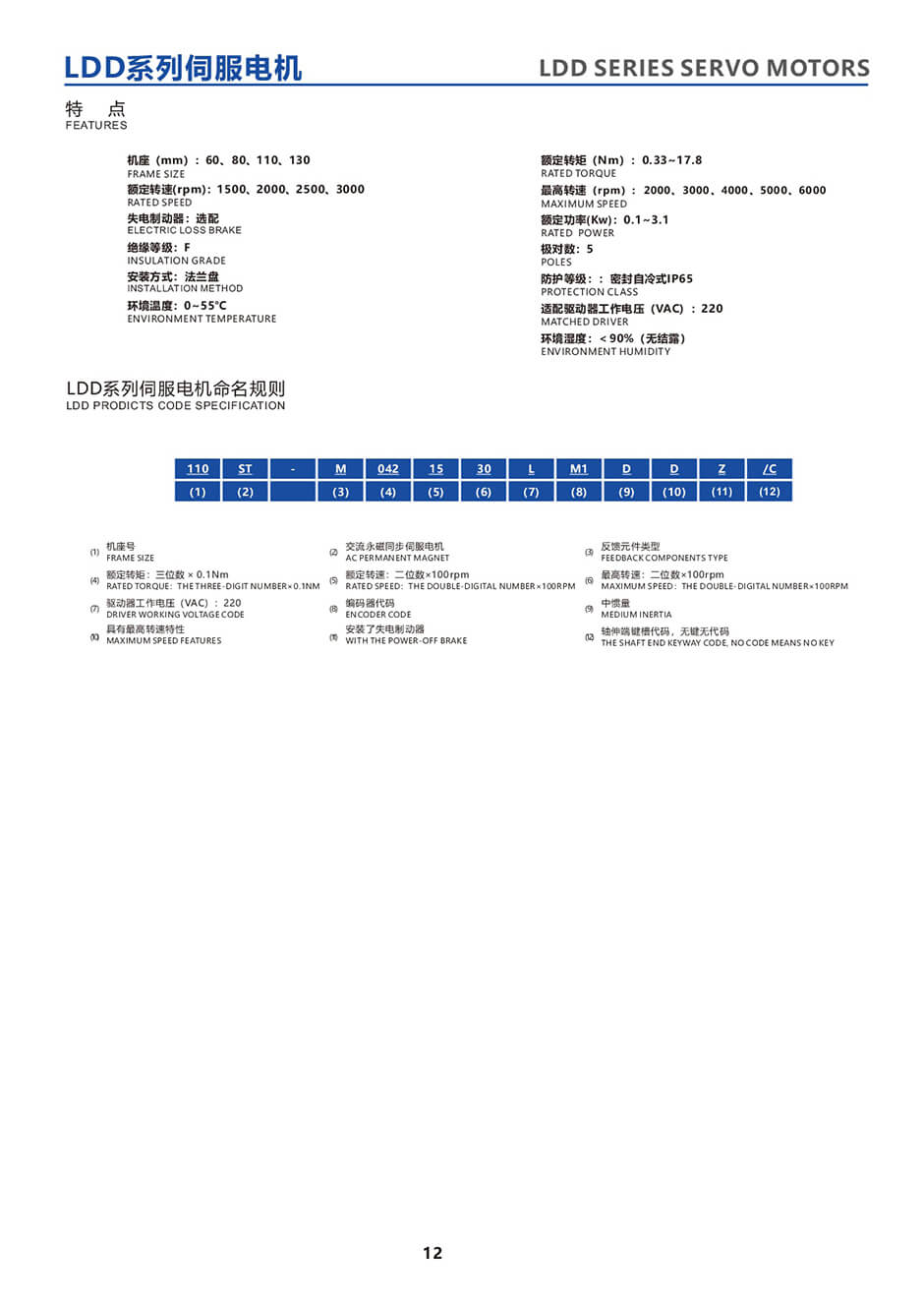

Product series:

LDD Series ac servo motor

Frame size -mm:60.80.110.130

Rated torque-NM:0.32-17.8

Rated power -Kw:0.1-2.8

Rated speed -RPM: 1500.2000.2500.3000

Maximum speed -RPM : 2000.3000.4000.6000

number of pole-pairs:5

The feedback element: Absolute photoelectric encoder (17bit or 23bit)

Electric brake: can match

Fit drive working voltage -VAC :220

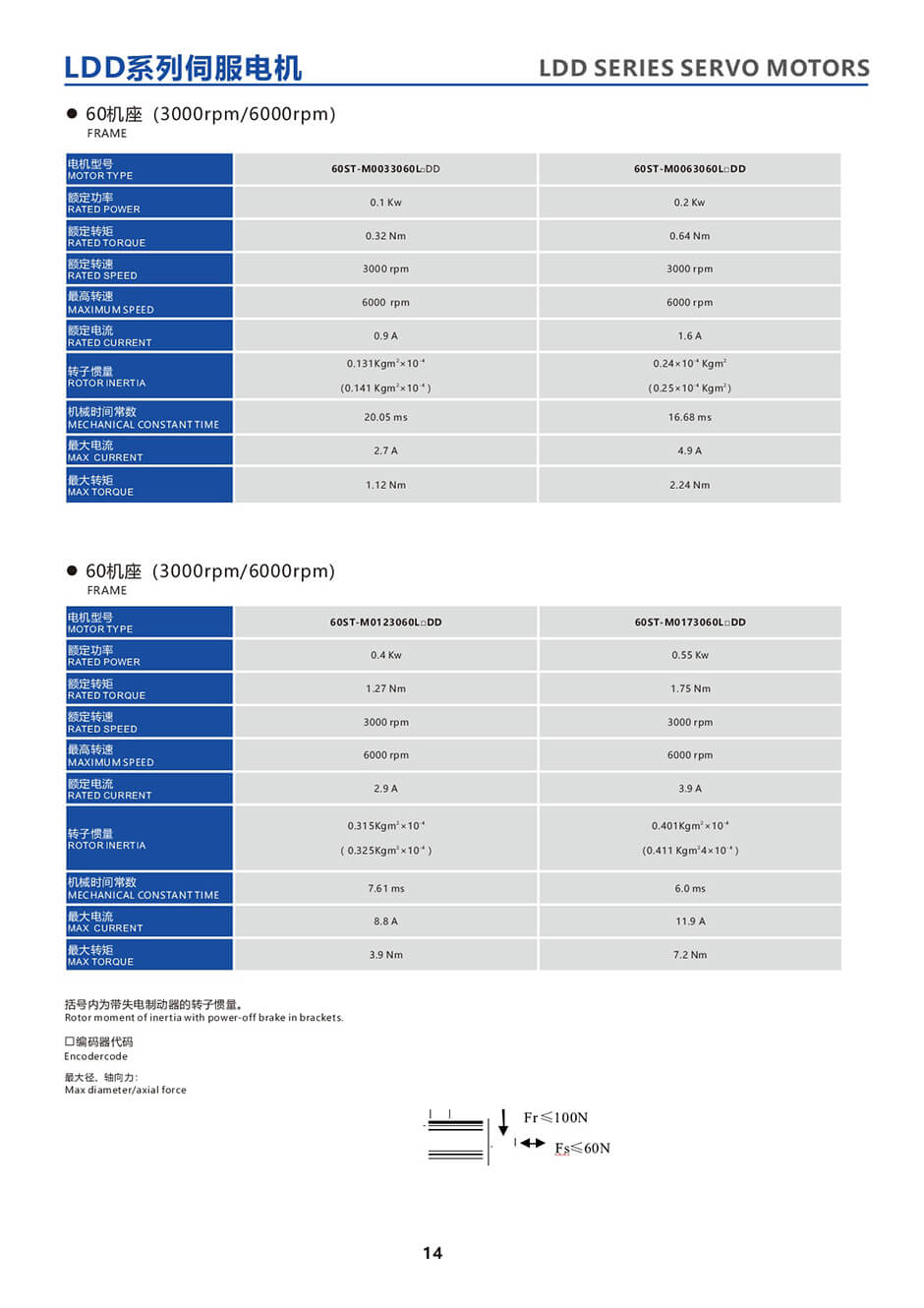

Servo Motor  model:

220V LDD Series ac servo motor- 23bit or 17bit absolute encoder

60ST-M0033060LM1DD 220v 0.1kw 0.9A 0.32Nm 3000-6000rpm

60ST-M0063060LM1DD 220v 0.2kw 1.6A 0.64Nm 3000-6000rpm

60ST-M0123060LM1DD 220v 0.4kw 2.9A 1.27Nm 3000-6000rpm

60ST-M0173060LM1DD 220v 0.55kw 2.2A 1.75Nm 3000-6000rpm

60ST-M0033060LMDD 220v 0.1kw 0.9A 0.32Nm 3000-6000rpm

60ST-M0063060LMDD 220v 0.2kw 1.6A 0.64Nm 3000-6000rpm

60ST-M0123060LMDD 220v 0.4kw 2.9A 1.27Nm 3000-6000rpm

60ST-M0173060LMDD 220v 0.55kw 2.2A 1.75Nm 3000-6000rpm

Application of servo motor:

Servo motor for boring machine

Servo motor for laser equipment

Servo motor for tissue machinery

Servo motor for automation equipment

Servo motor for tapping machine

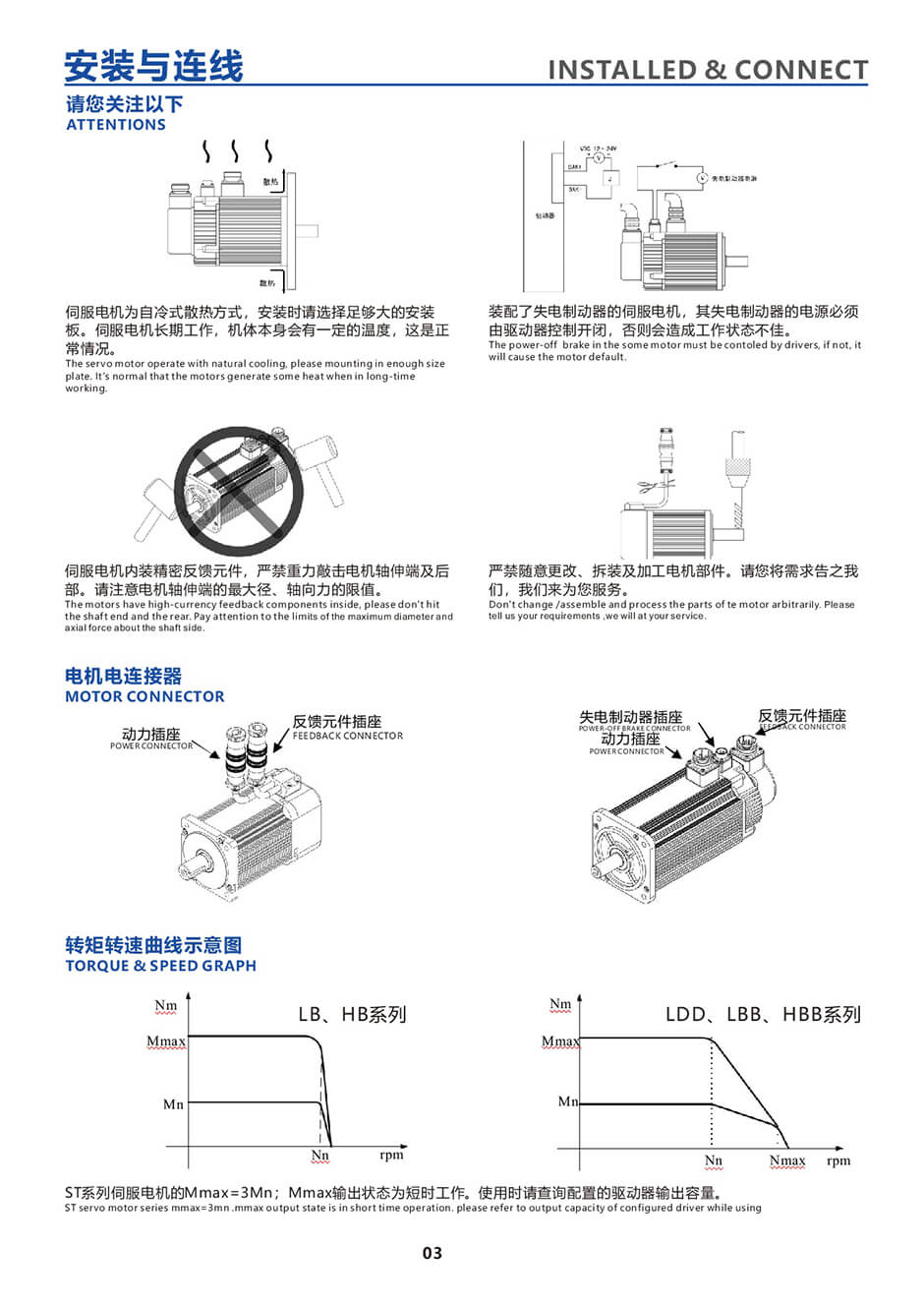

1-HXDWH-1-installed connect 2-HXDWH-2-installed connect 10-LDD series servo motors 11-LDD series servo motors2 12-LDD series 60ST servo motor 13-LDD series 60ST servo motor

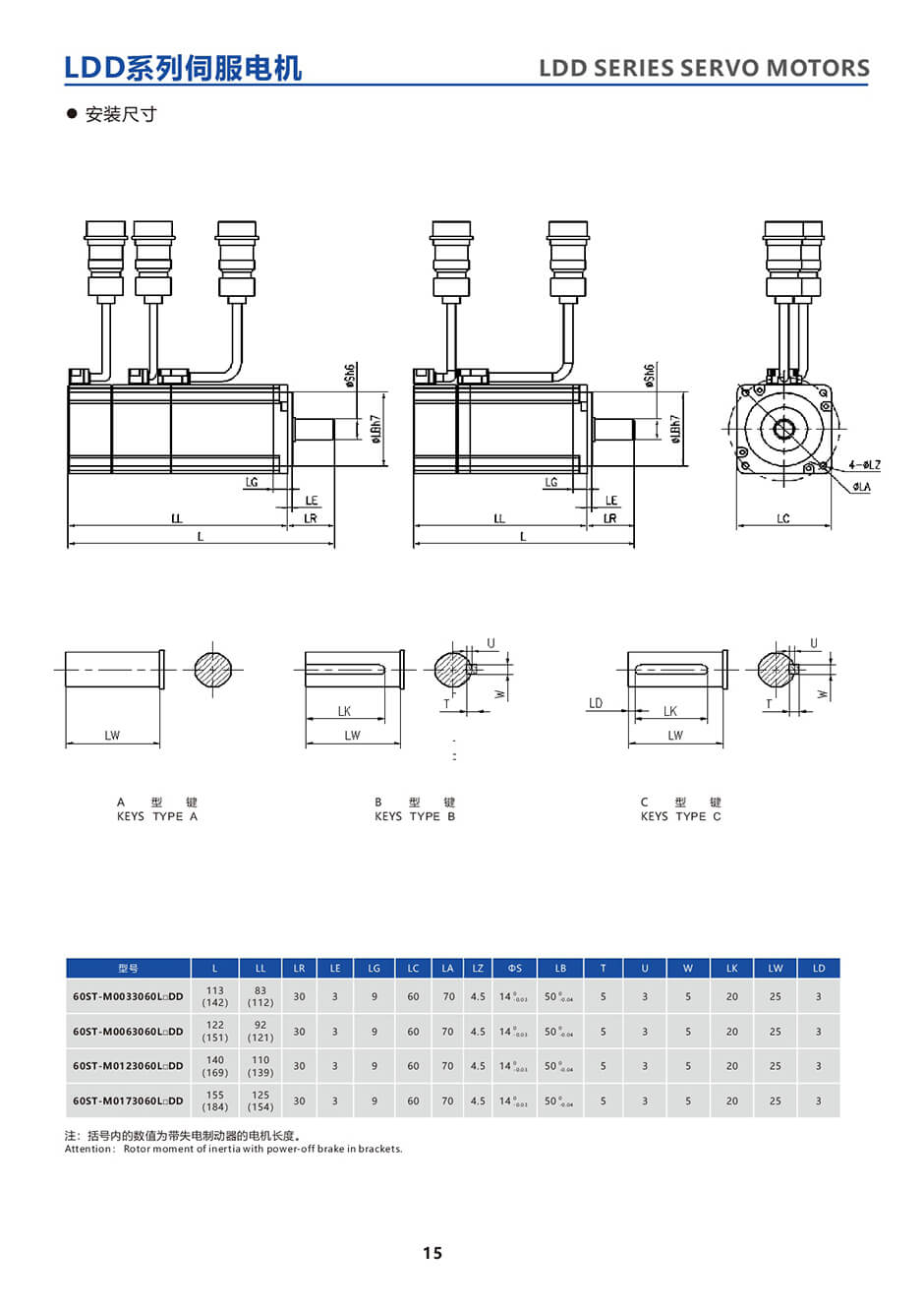

Product detail pictures:

One of Hottest for Servo Motor For Engraving Machine -
 60ST Flange servo motor 0.1-0.55kw – Xulong detail pictures

One of Hottest for Servo Motor For Engraving Machine -
 60ST Flange servo motor 0.1-0.55kw – Xulong detail pictures

One of Hottest for Servo Motor For Engraving Machine -
 60ST Flange servo motor 0.1-0.55kw – Xulong detail pictures
