PriceList for Servo Amp - 130ST Flange servo motor 0.65-2.8kw – Xulong Detail:

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

LDD Series ac servo motor

Frame size -mm:60.80.110.130

Rated torque-NM:0.32-17.8

Rated power -Kw:0.1-2.8

Rated speed -RPM: 1500.2000.2500.3000

Maximum speed -RPM : 2000.3000.4000.6000

number of pole-pairs:5

The feedback element: Absolute photoelectric encoder (17bit or 23bit)

Electric brake: can match

Fit drive working voltage -VAC :220

Servo Motor model:

220V LDD Series ac servo motor- 23bit or 17bit absolute encoder	130ST-M0421530LM1DD 220v 0.65kw 5.5A 4.2Nm 1500-3000rpm
130ST-M0423040LM1DD 220v 1.3kw 7.0A 4.2Nm 3000-4000rpm	130ST-M0541530LM1DD 220v 0.85kw 6.5A 5.4Nm 1500-3000rpm
130ST-M0543040LM1DD 220v 1.7kw 9.5A 5.4Nm 3000-4000rpm	130ST-M0641530LM1DD 220v 1.0kw 8.0A 6.4Nm 1500-3000rpm
130ST-M0643040LM1DD 220v 2.0kw 11.5A 6.4Nm 3000-4000rpm	130ST-M0751530LM1DD 220v 1.2kw 9.0A 7.5Nm 1500-3000rpm
130ST-M0753040LM1DD 220v 2.4kw 12A 7.5Nm 3000-4000rpm	130ST-M0841530LM1DD 220v 1.3kw 9.5A 8.4Nm 1500-3000rpm
130ST-M0843040LM1DD 220v 2.6kw 13.5A 8.4Nm 3000-4000rpm	130ST-M0961530LM1DD 220v 1.5kw 10A 9.6Nm 1500-3000rpm
130ST-M0962540LM1DD 220v 2.5kw 16A 9.6Nm 2500-4000rpm	130ST-M1151530LM1DD 220v 1.8kw 14A 11.5Nm 1500-3000rpm
130ST-M1152040LM1DD 220v 2.4kw 17.8A 11.5Nm 2000-4000rpm	130ST-M1461520LM1DD 220v 2.3kw 11A 14.6Nm 1500-2000rpm
130ST-M1462040LM1DD 220v 3.1kw 23A 14.6Nm 2000-4000rpm	130ST-M1461530LM1DD 220v 2.3kw 16A 14.6Nm 1500-3000rpm
130ST-M1781520LM1DD 220v 2.8kw 19A 17.8Nm 1500-2000rpm	130ST-M0421530LMDD 220v 0.65kw 5.5A 4.2Nm 1500-3000rpm
130ST-M0423040LMDD 220v 1.3kw 7.0A 4.2Nm 3000-4000rpm	130ST-M0541530LMDD 220v 0.85kw 6.5A 5.4Nm 1500-3000rpm
130ST-M0543040LMDD 220v 1.7kw 9.5A 5.4Nm 3000-4000rpm	130ST-M0641530LMDD 220v 1.0kw 8.0A 6.4Nm 1500-3000rpm
130ST-M0643040LMDD 220v 2.0kw 11.5A 6.4Nm 3000-4000rpm	130ST-M0751530LMDD 220v 1.2kw 9.0A 7.5Nm 1500-3000rpm
130ST-M0753040LMDD 220v 2.4kw 12A 7.5Nm 3000-4000rpm	130ST-M0841530LMDD 220v 1.3kw 9.5A 8.4Nm 1500-3000rpm
130ST-M0843040LMDD 220v 2.6kw 13.5A 8.4Nm 3000-4000rpm	130ST-M0961530LMDD 220v 1.5kw 10A 9.6Nm 1500-3000rpm
130ST-M0962540LMDD 220v 2.5kw 16A 9.6Nm 2500-4000rpm	130ST-M1151530LMDD 220v 1.8kw 14A 11.5Nm 1500-3000rpm
130ST-M1152040LMDD 220v 2.4kw 17.8A 11.5Nm 2000-4000rpm	130ST-M1461520LMDD 220v 2.3kw 11A 14.6Nm 1500-2000rpm
130ST-M1462040LMDD 220v 3.1kw 23A 14.6Nm 2000-4000rpm	130ST-M1461530LMDD 220v 2.3kw 16A 14.6Nm 1500-3000rpm
130ST-M1781520LMDD 220v 2.8kw 19A 17.8Nm 1500-2000rpm

Application of servo motor:

Servo motor for agricultural machinery

Servo motor for logistics equipment

Servo motor for instruments

Servo motor for papermaking equipment

Servo motor for food machinery

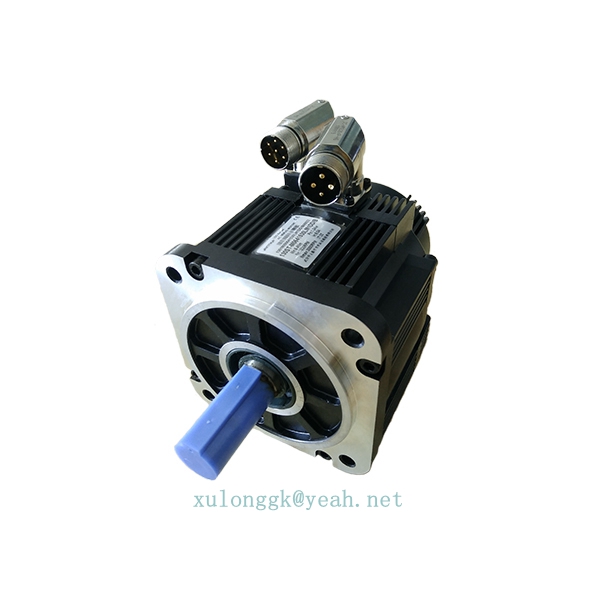

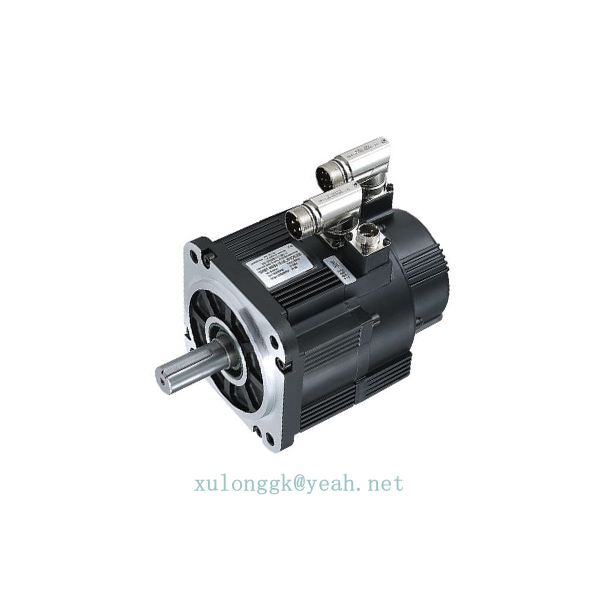

Product detail pictures:
