professional factory for Planetary Gearbox For Servo Motor - 130ST Flange servo motor 1.0-3.8kw – Xulong

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

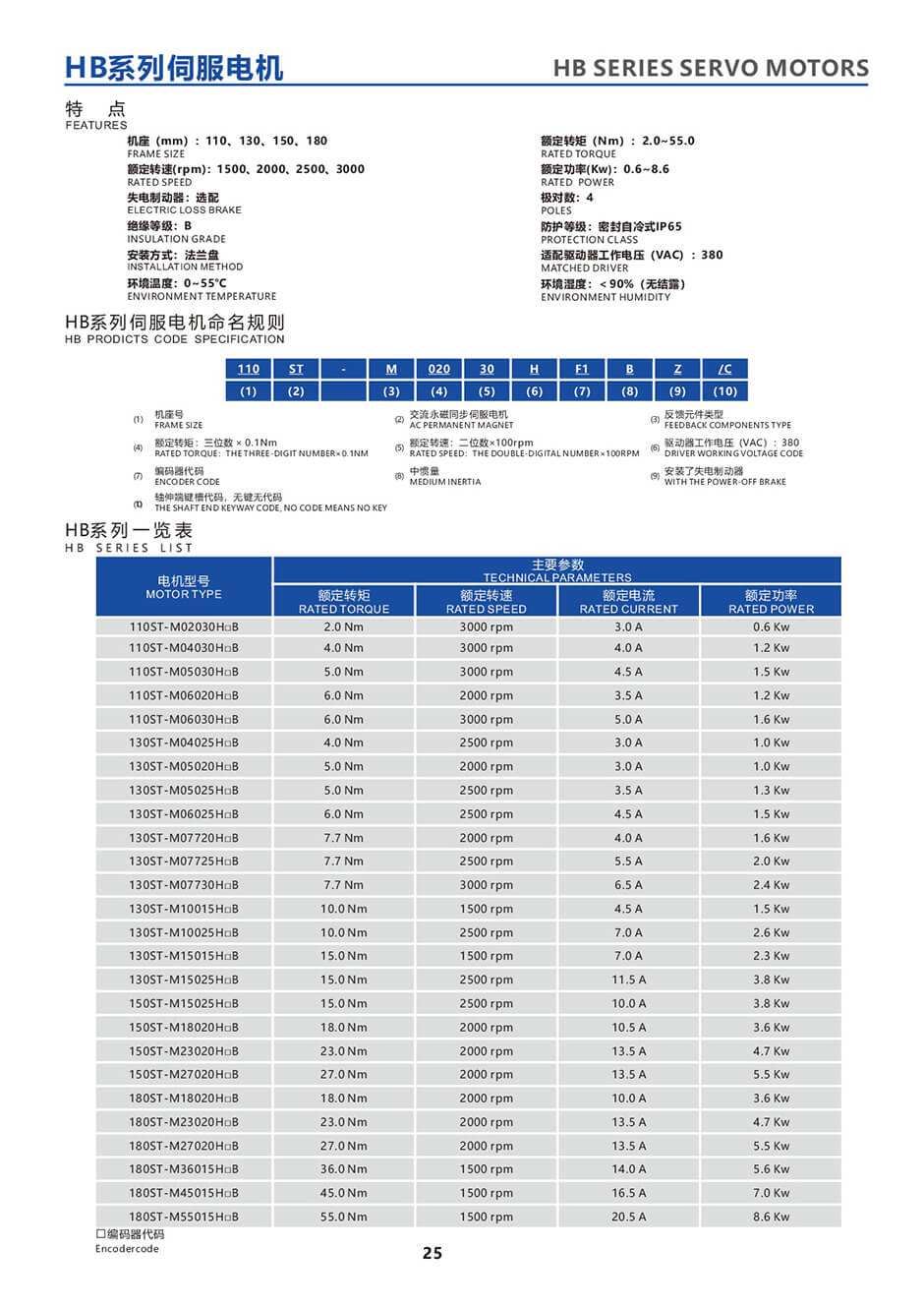

HB Series ac servo motors:

Frame size -mm : 110.130.150.180

Rated torque -NM: 2-55

Rated power -Kw:0.6-8.6

Rated speed -RPM:1500.2000.2500.3000

Maximum speed -RPM:/

number of pole-pairs: 4

The feedback element: Incremental Encoder 2500C/T

Electric brake: can match

Fit drive working voltage -VA : 380

HMB Series ac servo motors:

Frame size-mm : 110.130.150.180

Rated torque -NM :4.8-55

Rated power -Kw :0.85-8.6

Rated speed -RPM :1500,2000

number of pole-pairs: 4

The eedback element: Absolute photoelectric encoder (17bit)

Electric brake: can match

Fit drive working voltage -VAC :380

Servo Motor  model:

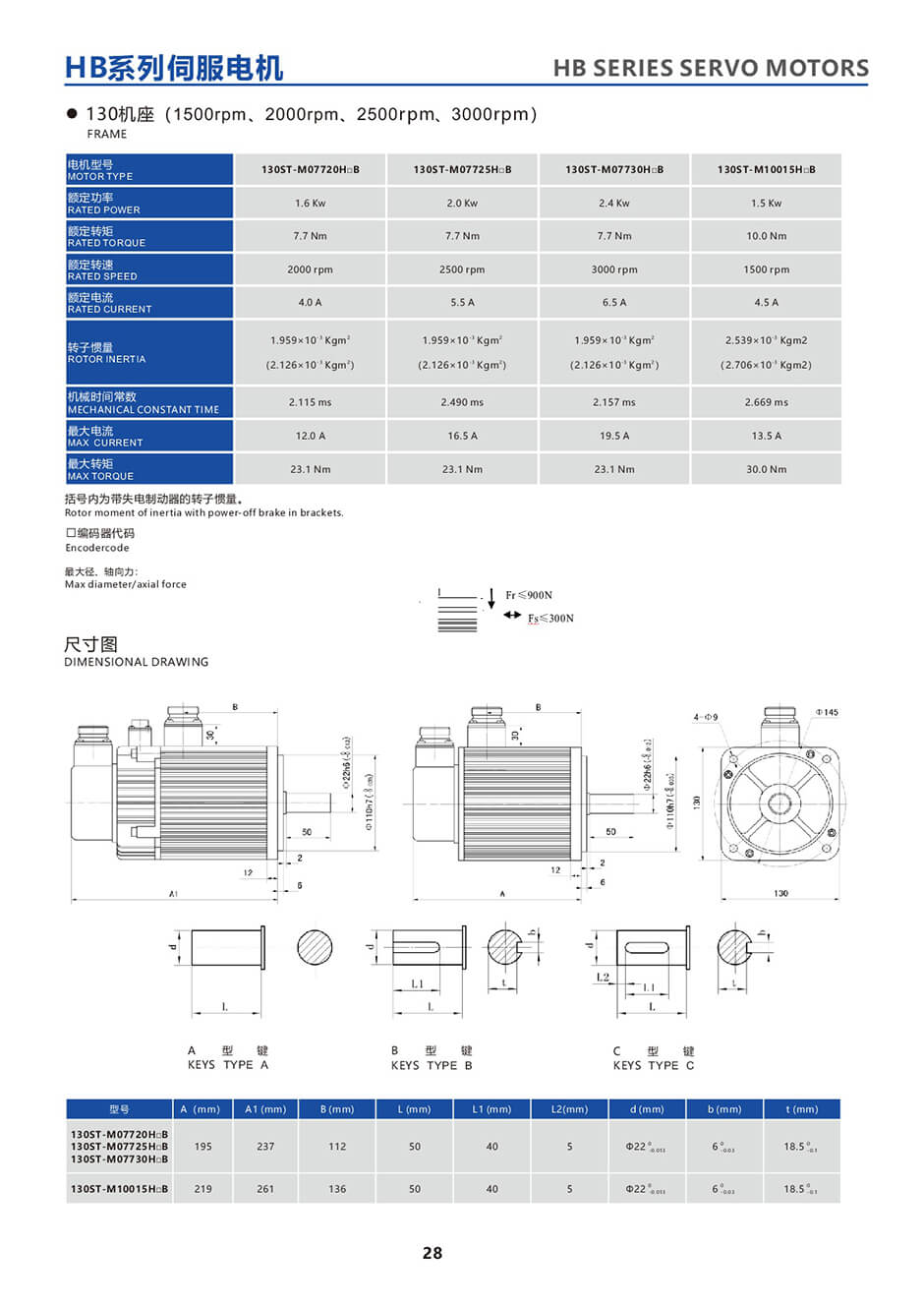

380V-400V HB Series ac servo motor- 2500C/T incremental encoder

130ST-M04025HFB 380V 1.0KW 3A 4.0NM 2500RPM

130ST-M05025HFB 380V 1.0KW 3.5A 5.0NM 2000RPM

130ST-M06025HFB 380V 1.5KW 4.5A 6Nm 2500RPM

130ST-M07720HFB 380V 1.6KW 4A 7.7NM 2000RPM

130ST-M07725HFB 380V 2.0KW 5.5A 7.7NM 2500RPM

130ST-M07730HFB 380V 2.4KW 6.5A 7.7NM 3000RPM

130ST-M10015HFB 380V 1.5KW 4.5A 10NM 1500RPM

130ST-M10025HFB 380V 2.6KW 7A 10NM 2500RPM

130ST-M15015HFB 380V 2.3KW 7A 15NM 1500RPM

130ST-M15025HFB 380V 3.8KW 11.5A 15NM 2500RPM

380V-400V HBB Series ac servo motor- 17bit absolute value encoder

130ST-M04025HMB 380V 1.0KW 3A 4.0NM 2500RPM

130ST-M05025HMB 380V 1.0KW 3.5A 5.0NM 2000RPM

130ST-M06025HMB 380V 1.5KW 4.5A 6Nm 2500RPM

130ST-M07720HMB 380V 1.6KW 4A 7.7NM 2000RPM

130ST-M07725HMB 380V 2.0KW 5.5A 7.7NM 2500RPM

130ST-M07730HMB 380V 2.4KW 6.5A 7.7NM 3000RPM

130ST-M10015HMB 380V 1.5KW 4.5A 10NM 1500RPM

130ST-M10025HMB 380V 2.6KW 7A 10NM 2500RPM

130ST-M15015HMB 380V 2.3KW 7A 15NM 1500RPM

130ST-M15025HMB 380V 3.8KW 11.5A 15NM 2500RPM

Application of servo motor:

Applied to CNC machine tools

Applied to industrial Robot

Apply to machining center

Applied to carving and milling equipment

Applied to deep hole drilling equipment
