Sigal Light JCB-8
Short Description:
The warning light can provide the user with three kinds of status signals: normal, waiting, and alarm, and can be freely matched according to the different production equipment of the customer to meet the overall installation requirements of the equipment, and achieve the overall aesthetic effect.
Sigal Light JCB-8

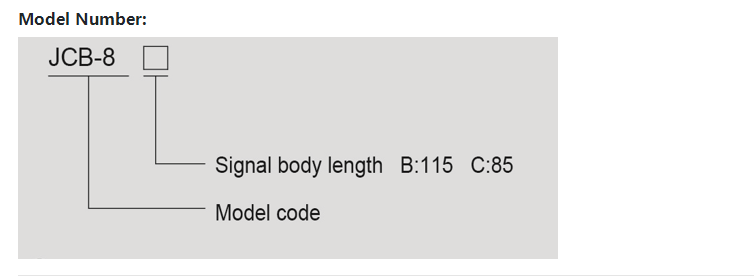

- Product model：JCB-8

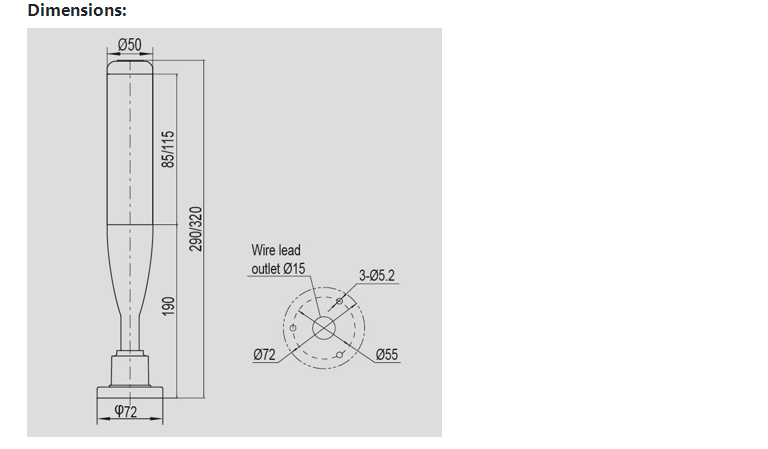

- Product size：50*320mm
- Rated Voltage:DC/AC24V
- Operating voltage range: 80%~120% of rated voltage
- Working Temperature: -30°C to +60°C
- Power consumption:≤ 3W
- Luminous color: red, yellow, green

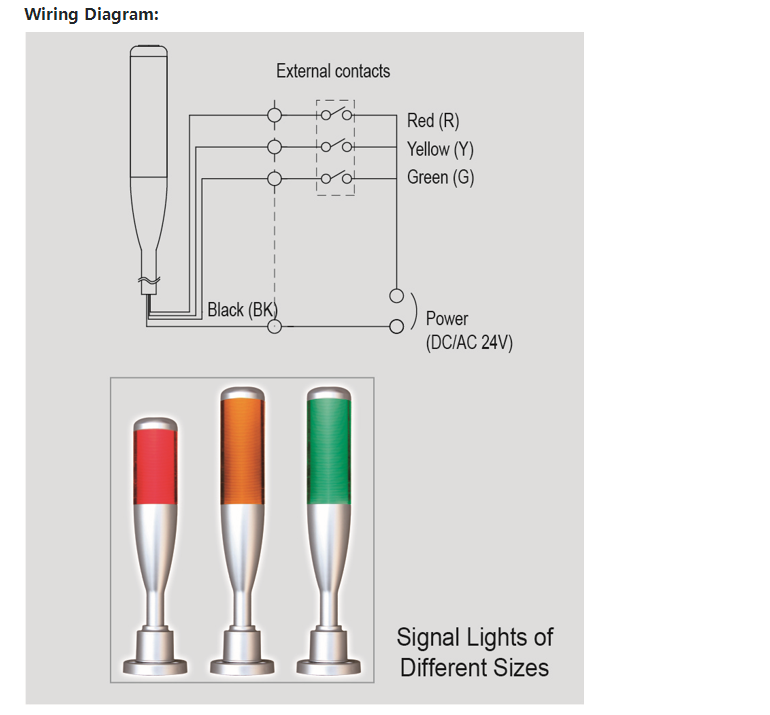

- Wiring method:According to the method usde for the required line length and teminal
Main feature:
- The exterior structure is simple and beautiful, and the installation and maintenance are convenient.
- Adopting constant current source circuit, the response speed is fast, the constant current precision is high, and it can work stably for a long time.
- AC and DC dual-use, according to the user plc programming, the lamp can be bright or shiny.

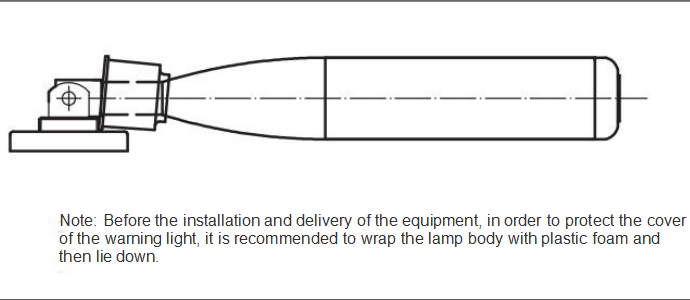

- Transportation instructions:
