Top Suppliers Selection Of Planetary Reducer - D-3 Rotating platform – Xulong Detail:

1. Product featuress:

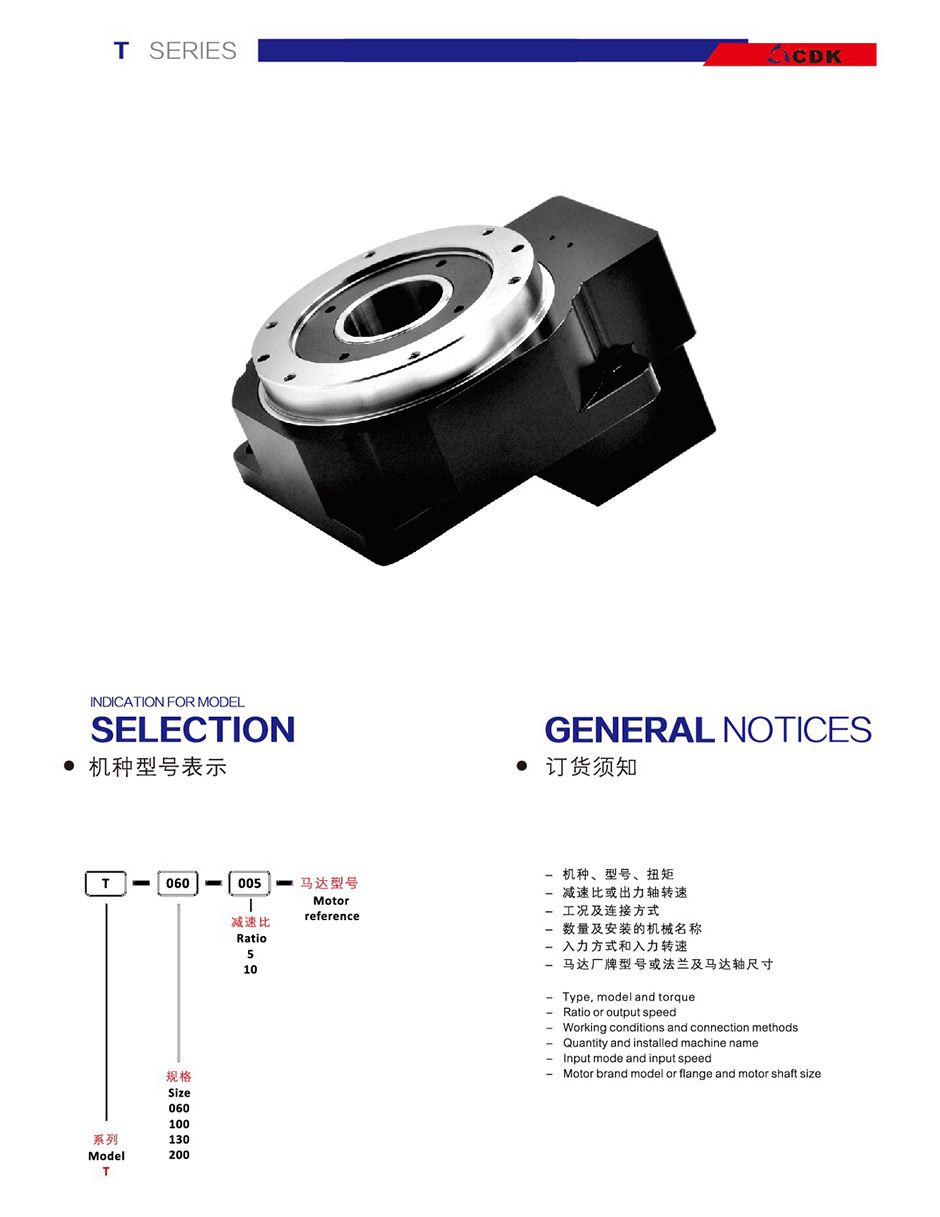

Rotating platform series

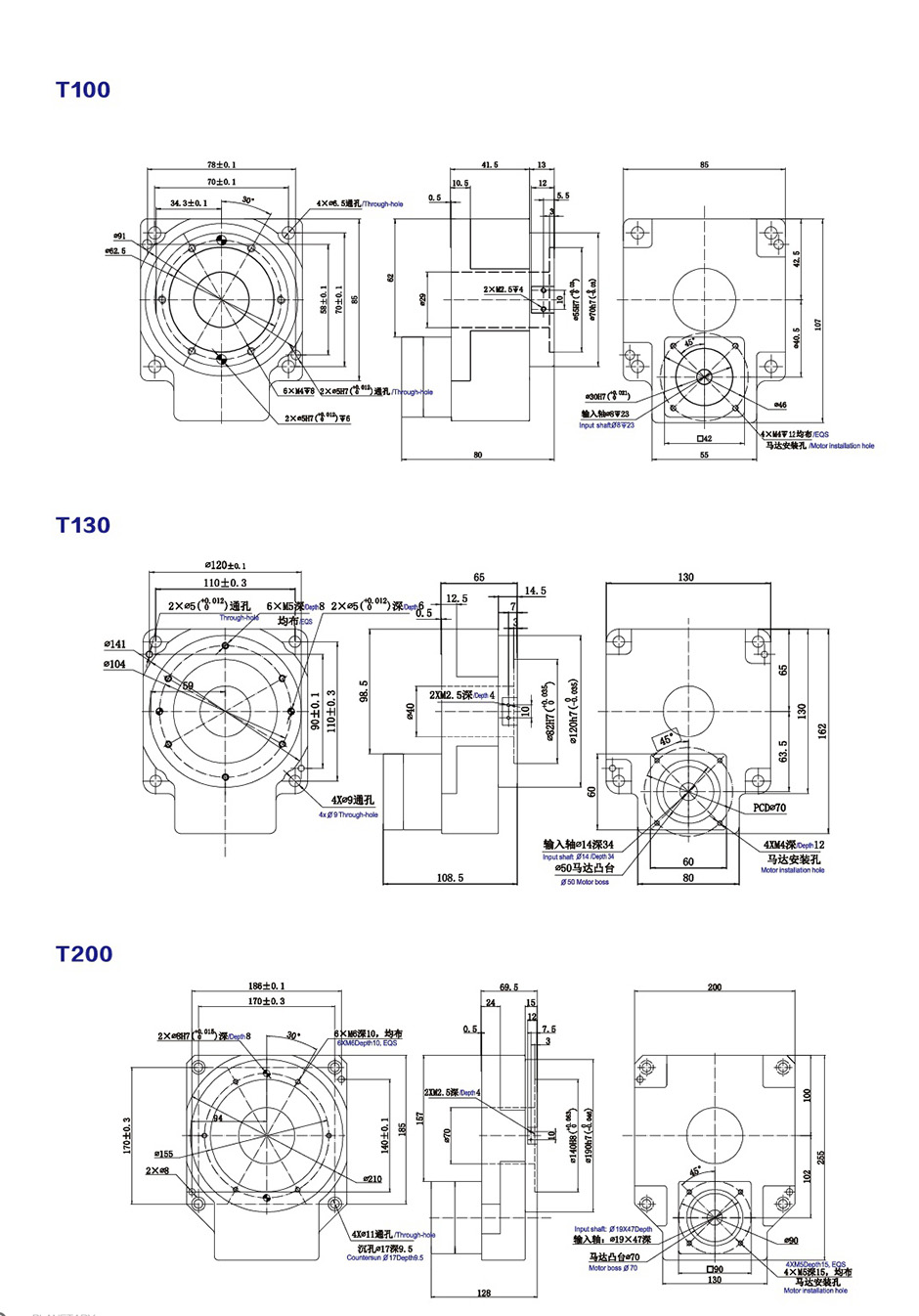

Flange dimensions :T060 & T100 & T130 & T200

Product description :

Rotating platform

Factory Direct

Matching motor:

T060&T100:  matching  42 step motor&50W-100W servo motor

T130: matching 57 step motor&200w-400w servo motor

T200: matching 86 step motor&750w servo motor

Supporting rotary platform bearing:

T060&T100: Deep groove ball bearing

T130&T200: Deep groove ball bearing+Tapered roller bearing

Ratio:

T060:  5:1

T100&T130&T200:  10:1

Angle transmission precision: 3arcmin

Backlash: No backlash(Adjustable structure)

Parallelism of rotating platform:

T060: <0.015

T100&T130: <0.02

T200: <0.04

IP Grade: IP40

T-2-1 T-2-2 T-2-3


Product detail pictures:

Top Suppliers Selection Of Planetary Reducer -
 D-3 Rotating platform – Xulong detail pictures

Top Suppliers Selection Of Planetary Reducer -
 D-3 Rotating platform – Xulong detail pictures

Top Suppliers Selection Of Planetary Reducer -
 D-3 Rotating platform – Xulong detail pictures

Top Suppliers Selection Of Planetary Reducer -
 D-3 Rotating platform – Xulong detail pictures
