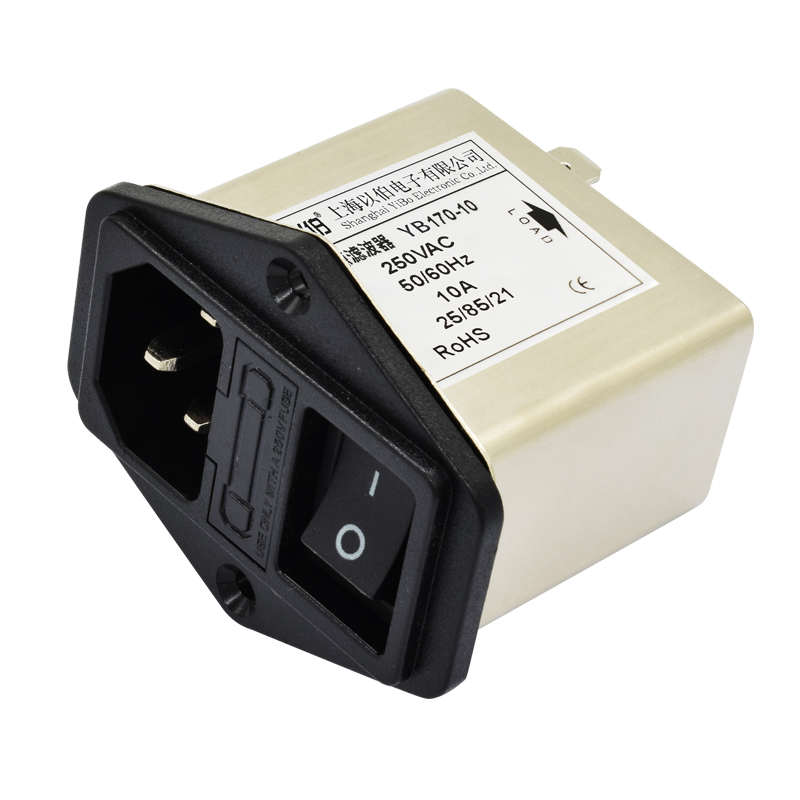

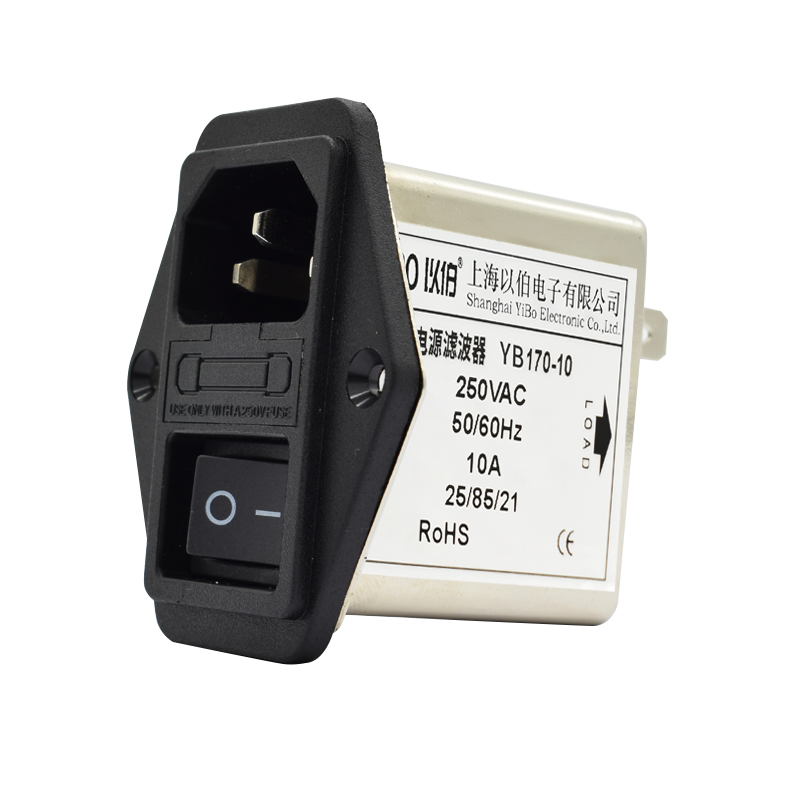

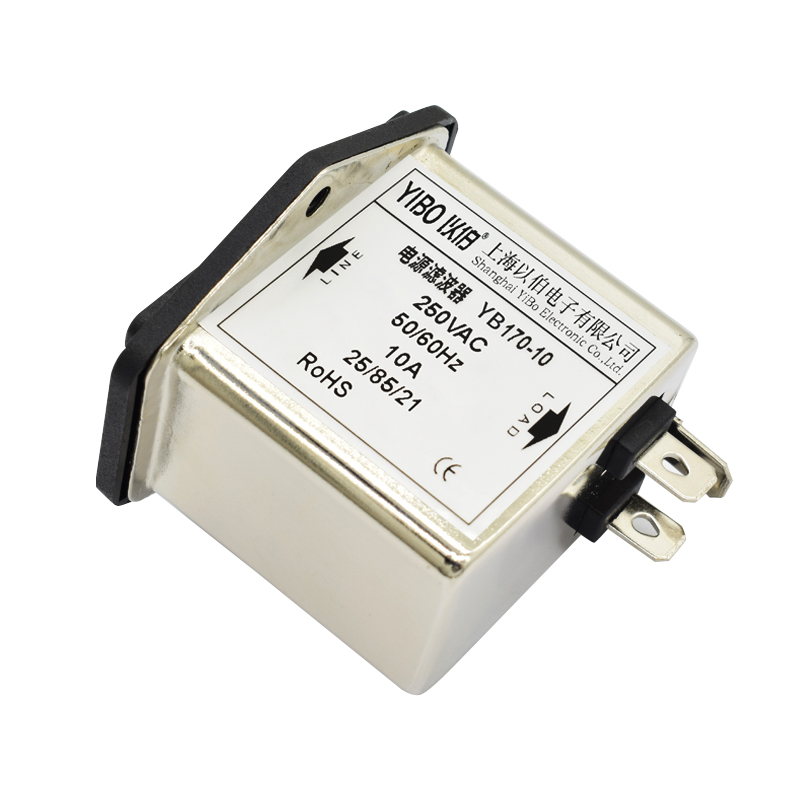

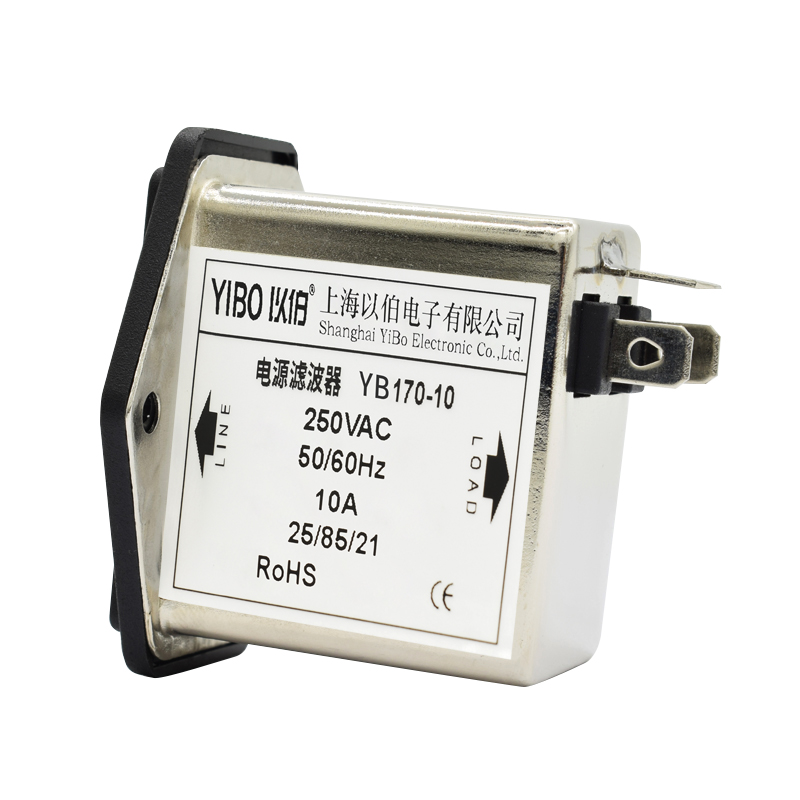

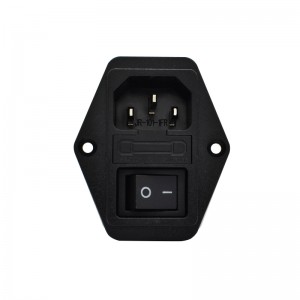

YB170 series power filter with fuse and switching IEC socket
Short Description:
Rated voltage: 250VAC Rated current: 1 ~ 10a Product advantages: specially designed for IEC standard connector, with a fuse and switch control, safe and reliable, easy to install and cost-effective.
YB170 series IEC socket power filter with single fuse and switch socket (three in one)
Product introduction
Rated voltage: 250VAC
Rated current 1-10A is optional.
The input end is an IEC standard socket with a fuse and a switch.
Output terminal leads and welding tabs can be selected in two ways.
Optional medical equipment special type (B series)
Can be customized according to customer needs.
Characteristics and advantages
-specially designed for IEC standard connectors, with convenient installation and high cost performance.
-with a φ Φ5.0×20 F glass fuse and bipolar control switch.
– YB180 series adopts first-stage common-mode filter design, and ordinary filter.
-5 khz-30 MHz has good common mode and differential mode filtering effect.
application area
IT, communication equipment, instrumentation, household small tools, test and measurement equipment, etc., need to connect standards, Plug electronic equipment
Application equipment: suitable for integrated electronic equipment and electronic measuring instruments, medical equipment and medical treatment special applications.
Specification model:YB170-1、YB170-3、YB170-6、YB170-10
