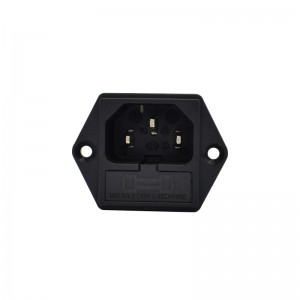

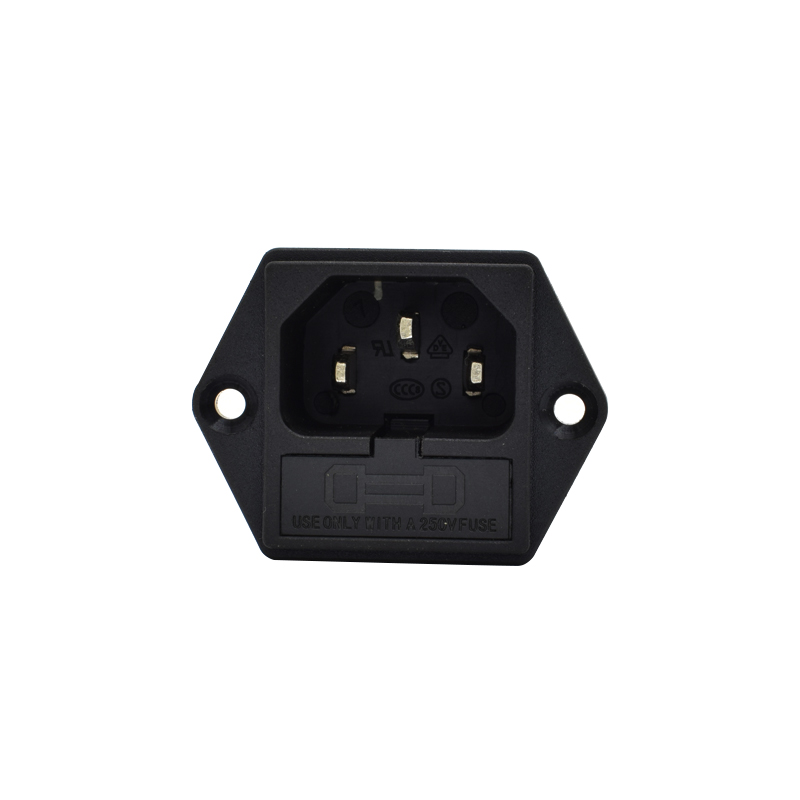

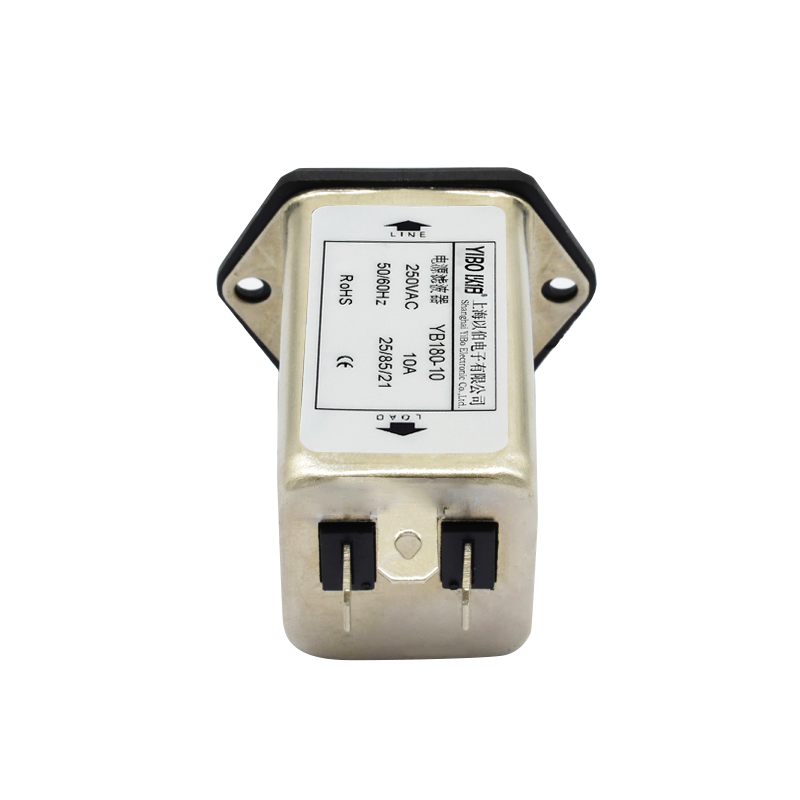

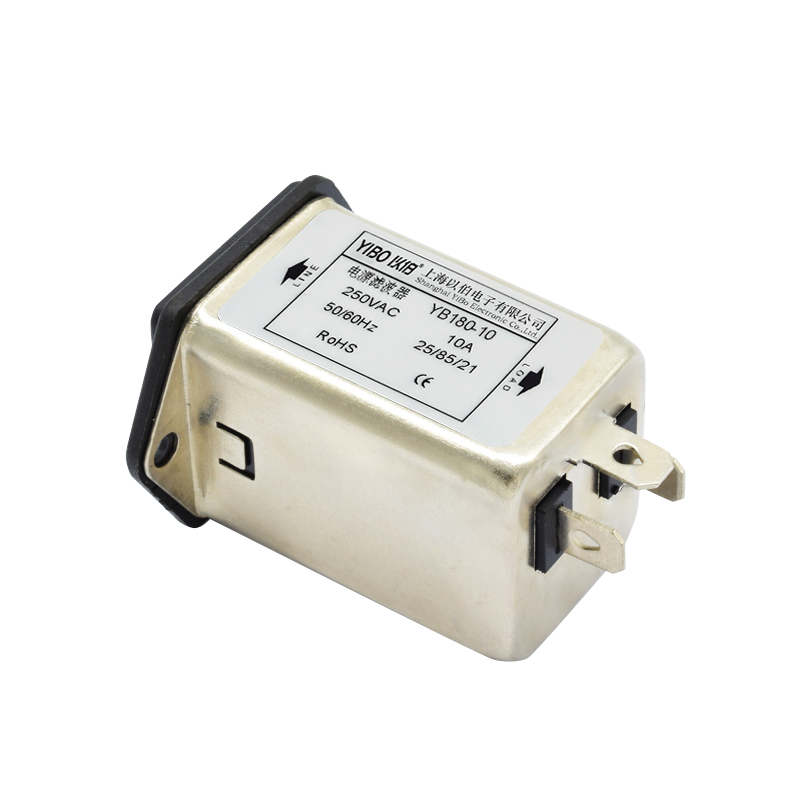

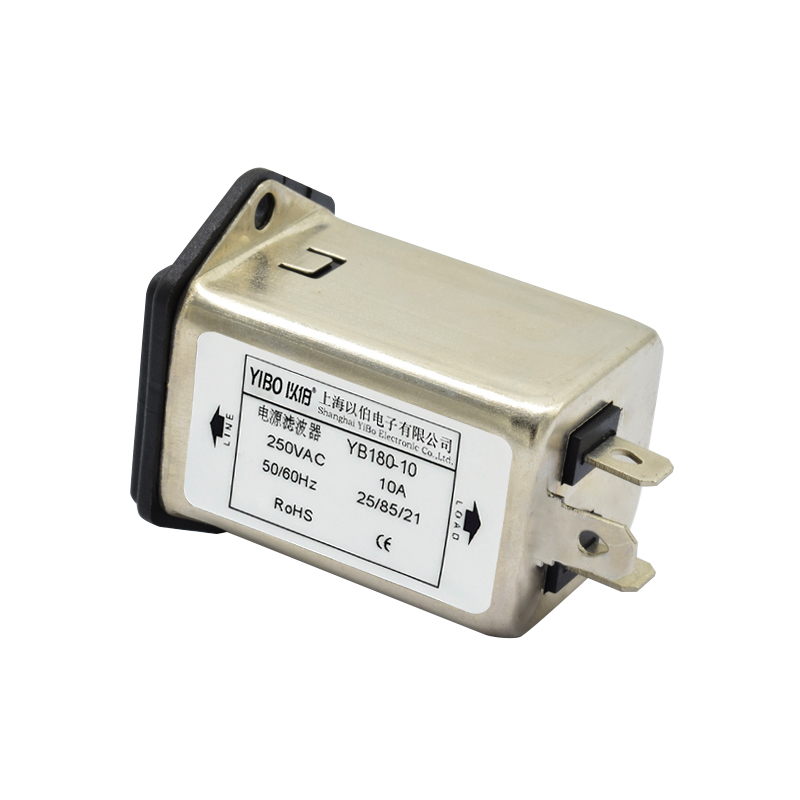

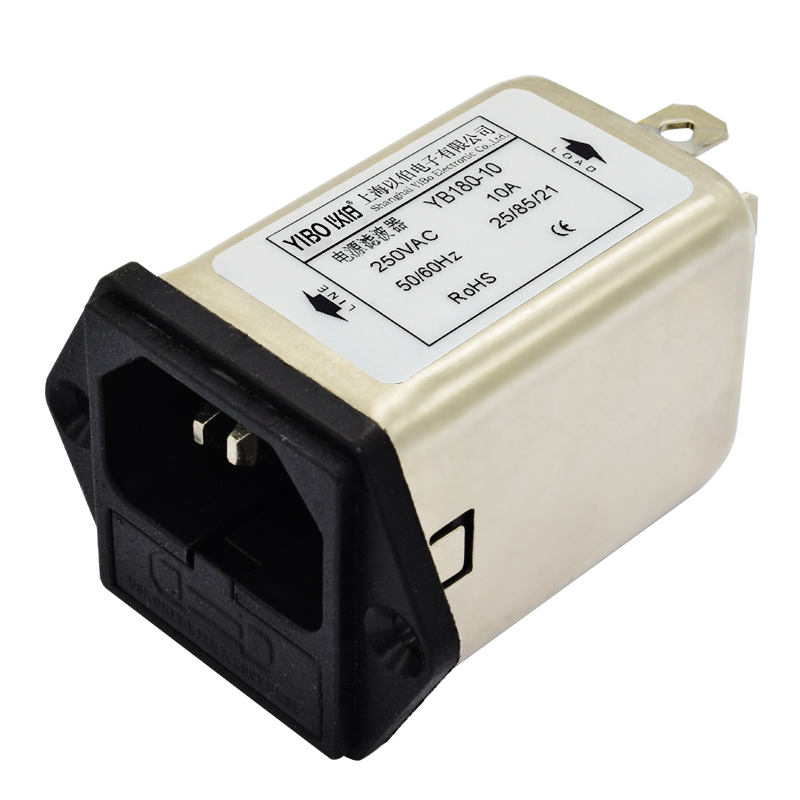

YB180 series IEC socket power filter with fuse
Short Description:
Rated voltage: 250VAC Rated current: 1 ~ 10a Product advantages: IEC950 standard socket with single safety tube, compact shape, easy installation, excellent conduction attenuation performance and high cost performance.
YB180 series IEC socket power filter with single fuse and socket type (two in one)
Product introduction:
Rated voltage: 250VAC
Rated current :1-10A is optional
The input end is an IEC standard socket with a fuse.
Output terminal leads and welding tabs can be selected in two ways.
Optional medical equipment special type (B series)
Can be customized according to customer needs.
Characteristics and advantages:
-specially designed for IEC standard connectors, with convenient installation and high cost performance.
-with a φ Φ5.0×20 F glass fuse and bipolar control switch.
– YB180 series adopts first-stage common-mode filter design, and ordinary filter.
-5 khz-30 MHz has good common mode and differential mode filtering effect.
application area:
IT, communication equipment, instrumentation, household small tools, test and measurement equipment, etc., need to connect standards, Plug electronic equipment
Product advantages: IEC950 standard socket with single safety tube, compact shape, easy installation, excellent conduction attenuation performance and high cost performance.
Application equipment: suitable for integrated electronic equipment and electronic measuring instruments, medical equipment and medical special applications.
Specification model:YB180-1、YB180-3、YB180-6、YB180-10
Weight (g): 650
