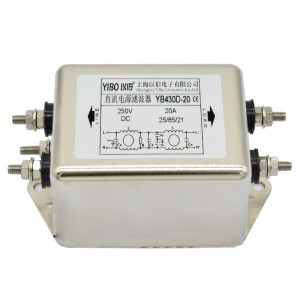

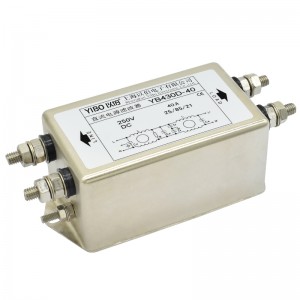

YB430D series two-section universal DC power supply filter
Short Description:
Rated voltage: 250VDC Rated current: 3A~30A Product advantages: specially designed to suppress noise on DC power line, two-section filter, excellent low-frequency and high-frequency filtering effect. Suitable for communication equipment, various electronic equipment with DC power supply, etc.
YB430D series two-section DC power filter
Product brief introduction (this series of products can provide terminal connection mode)
Rated current 1A-500A is optional.
Working voltage 0-250VDC
Lead wires, welding tabs, bolts, terminal blocks and other lead-out methods are optional.
Can provide customized products
Characteristics and advantages：
– High-performance filter, with excellent common-mode and differential-mode filtering effects. The effective filtering range is 5KHz-30MHz
– YB410D series adopts two-stage common-mode filtering design, and the filtering effect is balanced.
–Products with high working voltage above 250 VDC can be customized.
Application equipment: It is suitable for DC measurement of various electronic equipment and electronic measuring instruments such as switching power supply and program-controlled switches.

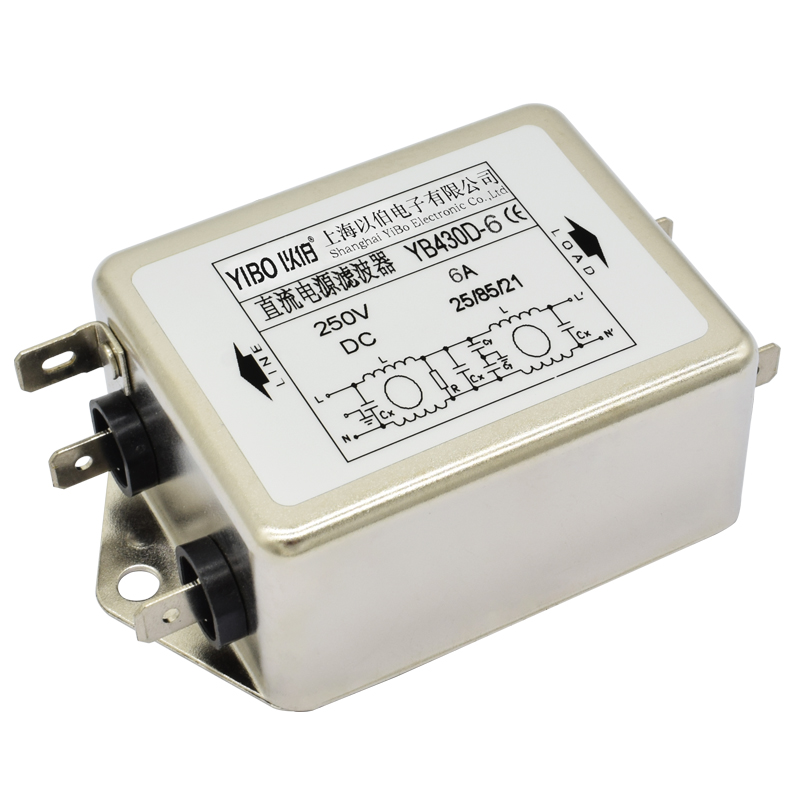

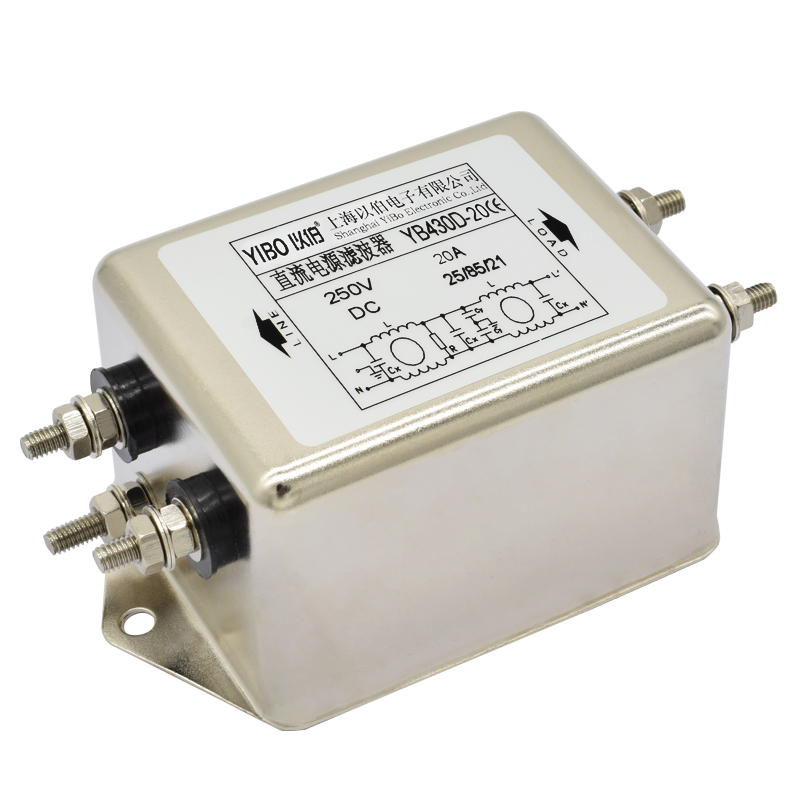

Specification model：YB430D-3、YB430D-6、YB430D-10、YB430D-15、YB430D-20、YB430D-30、YB430D-50、YB430D-75、YB430D-120
Weight (g):160-3000g
