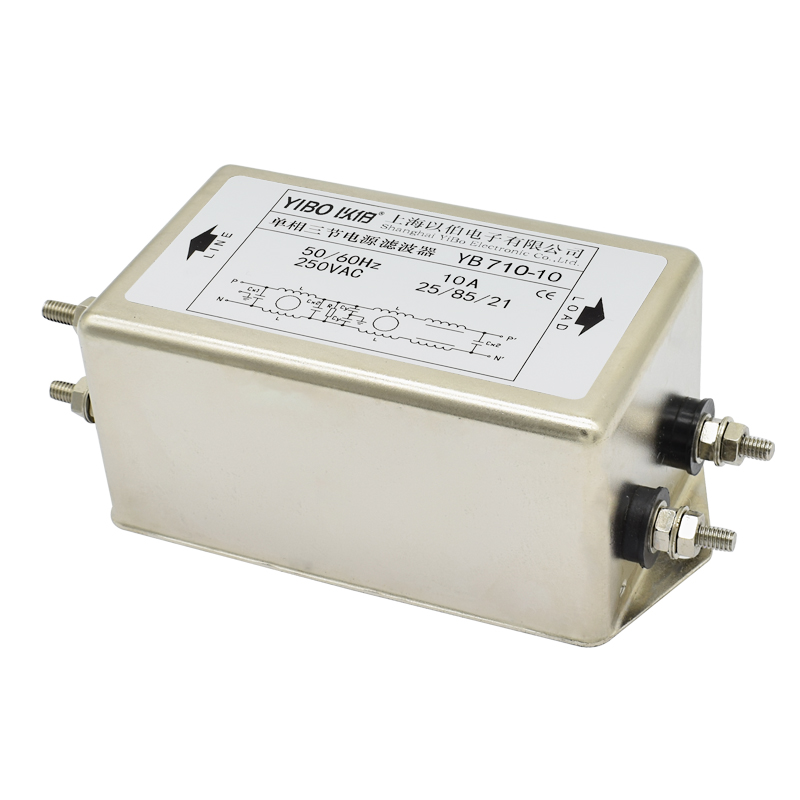

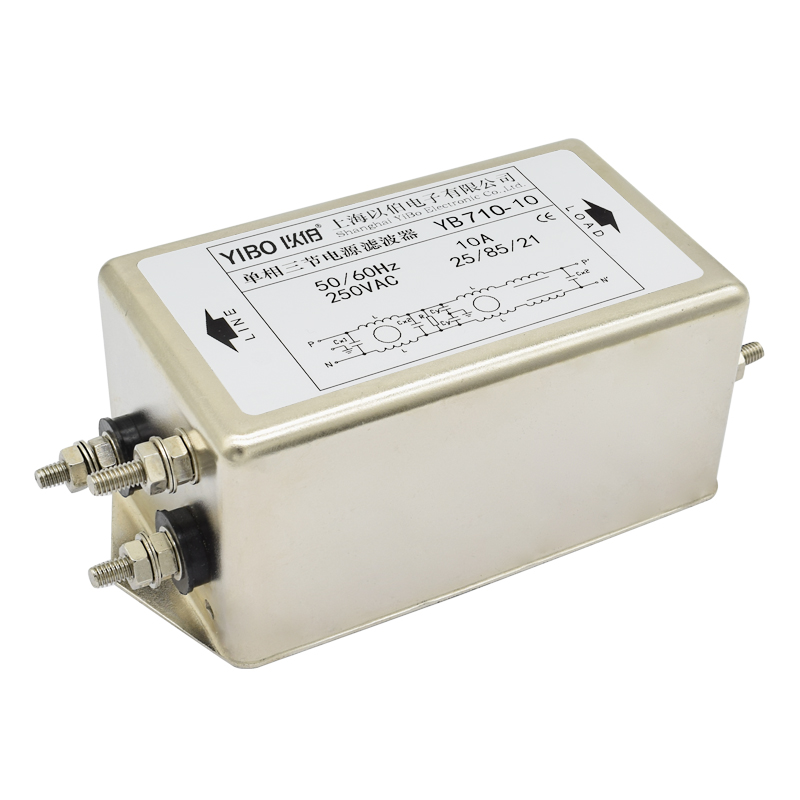

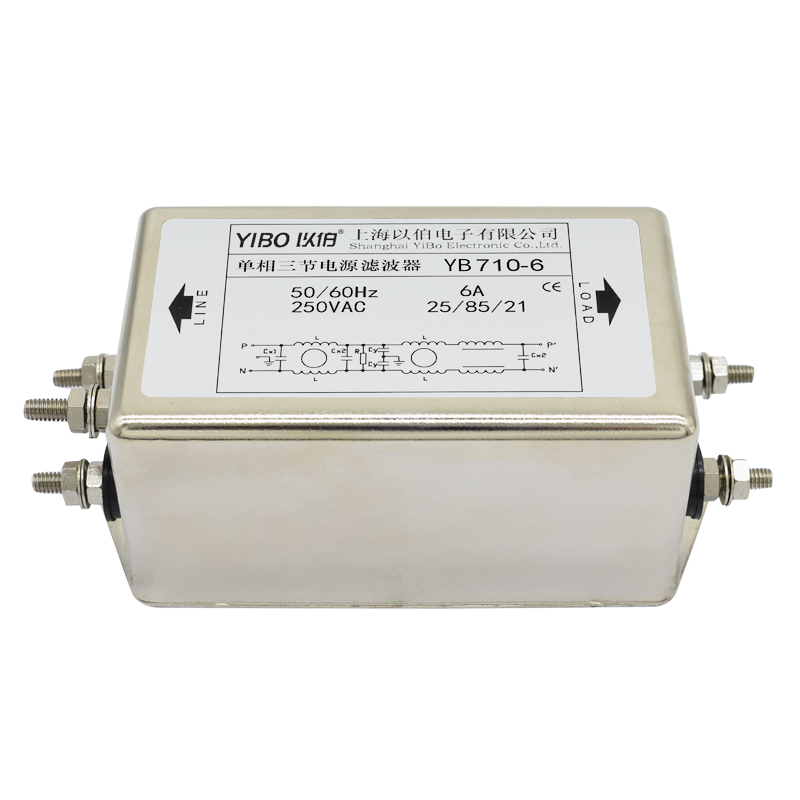

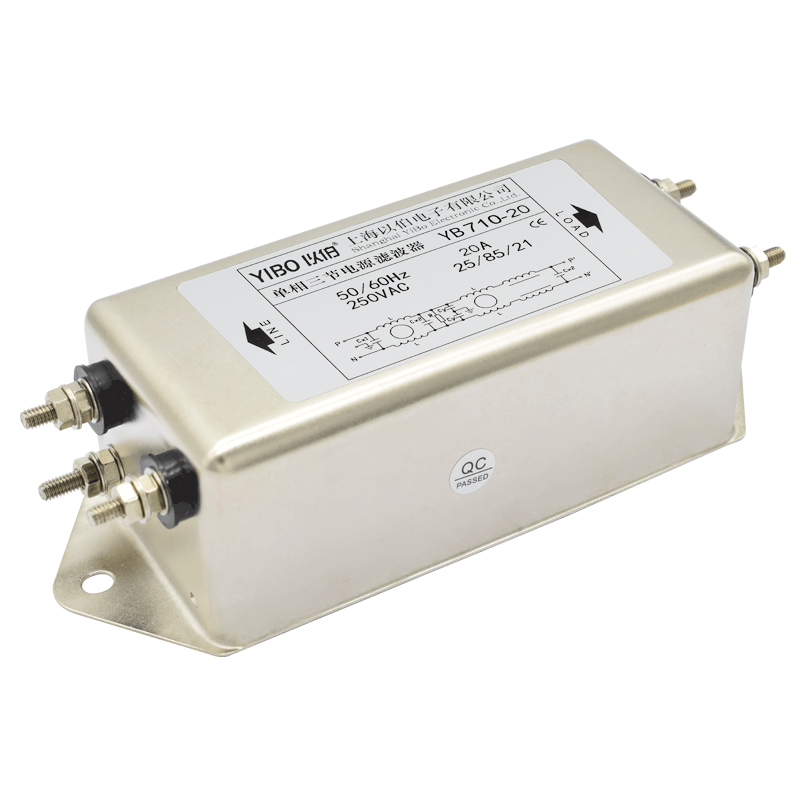

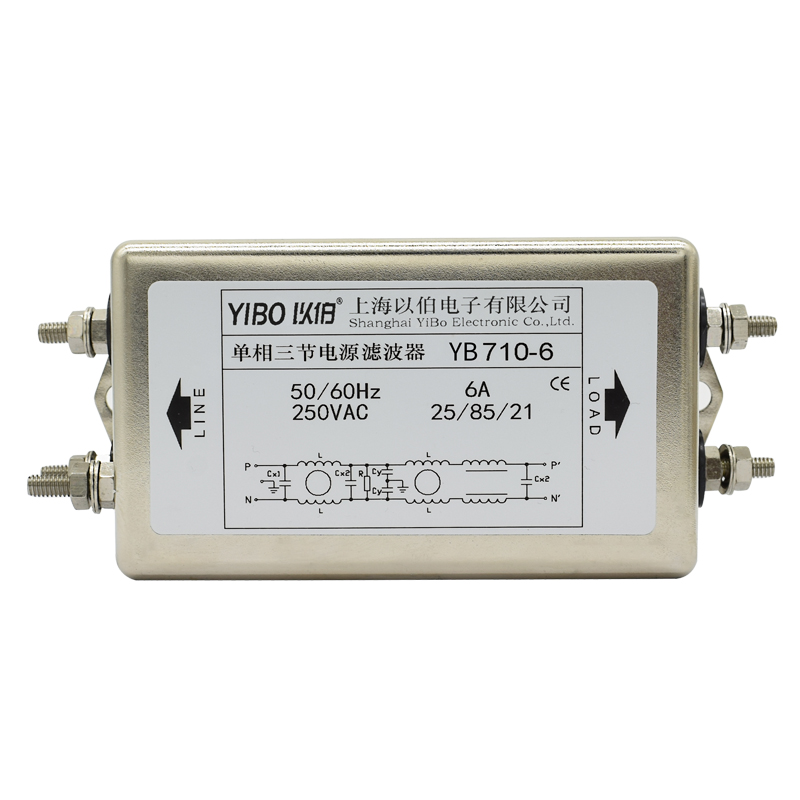

YB710 Series three high-performance AC power filters
Short Description:
Rated voltage: 250VAC Rated current: 1 ~ 150A Advantages: High performance power filter, in the wide range of 10KHz~30MHz has a good common mode and differential mode filter effect three sections filter, can solve the EMC/EMI problems of most equipment. Application equipment: Suitable for inverter,
YB710 Series three high-performance AC power filters
Rated current: 1 ~ 150A
Optional Special Medical Equipment (B Series)
Lead, solder, bolt, terminal station and other extraction methods are available
Customized products are available
Characteristics and advantages
- High performance filter with higher common mode, differential mode filtering effect and better low frequency filtering effect
The effective filtering range is 5KHz-30MHz
The YB710 series uses a three-stage filter design consisting of a first-stage differential mode and a two-stage common mode, which is especially suitable for use
Equipment or environment that interferes particularly badly
– 380VAC (inclusive) and above high working voltage products are optional
Application field
Electronic and electrical equipment, data communication equipment, single-phase servo motor, inverter, PLC, variable frequency power supply,
Electric vehicles, charging piles and other equipment or environments with particularly bad interference
