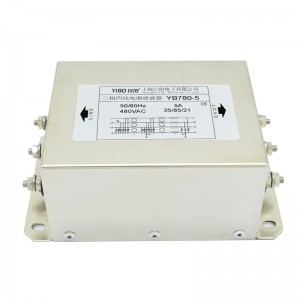

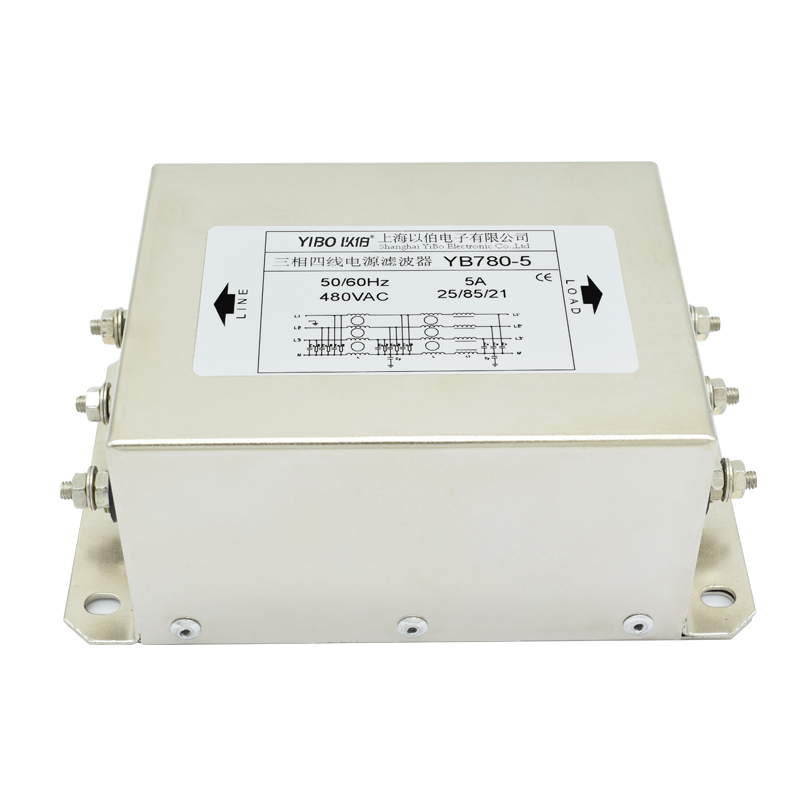

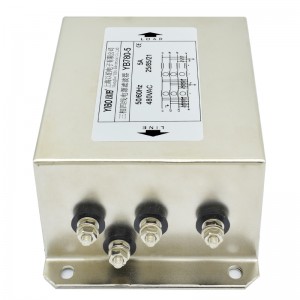

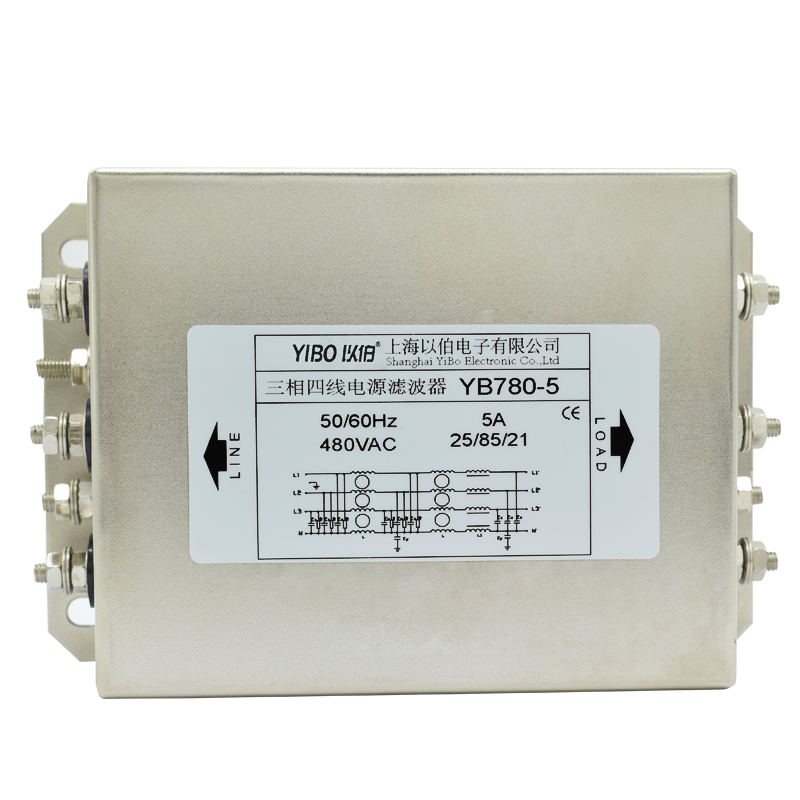

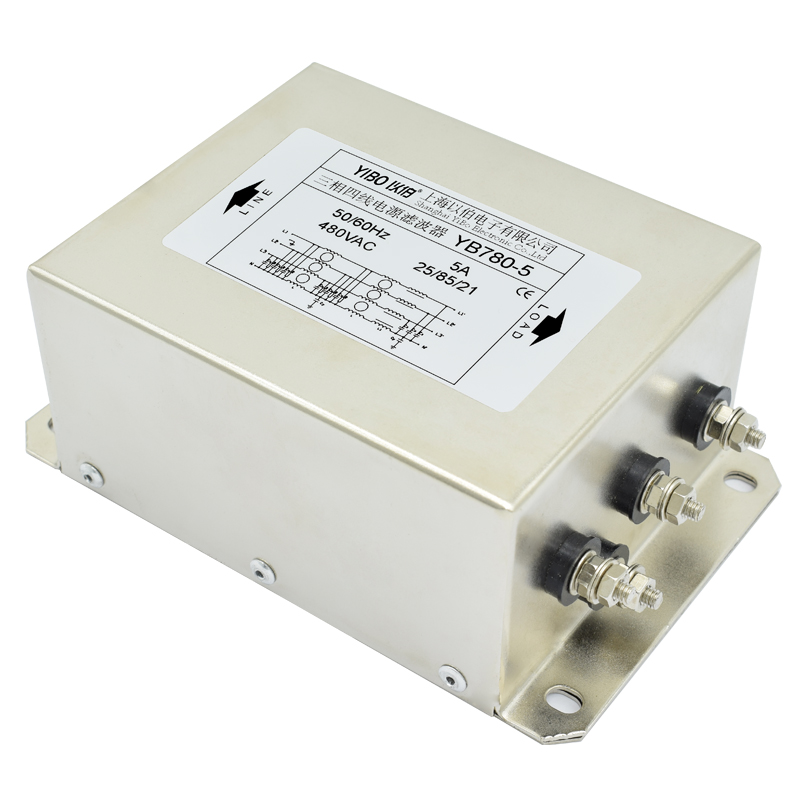

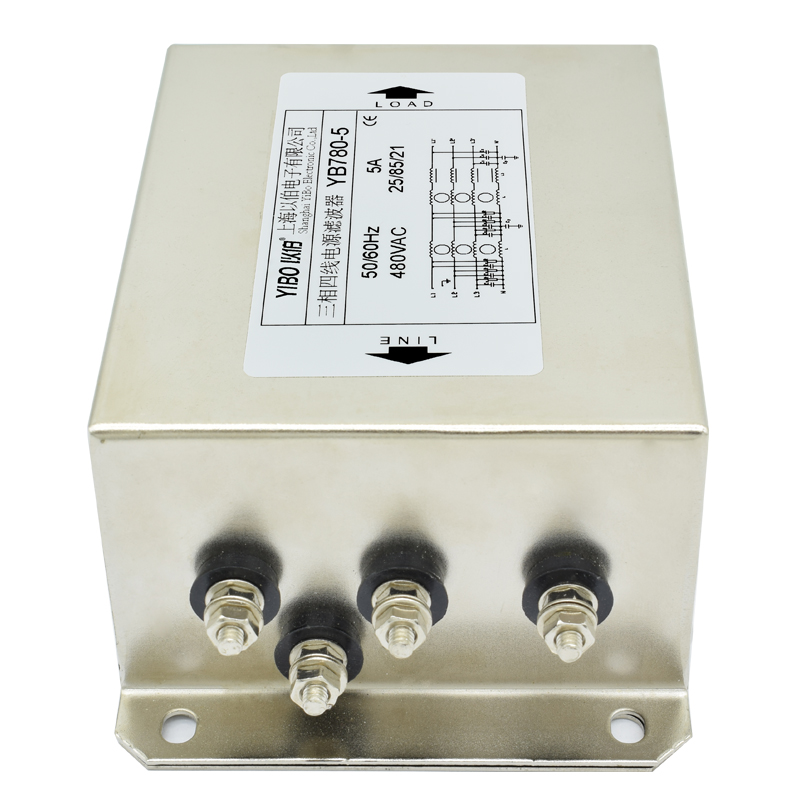

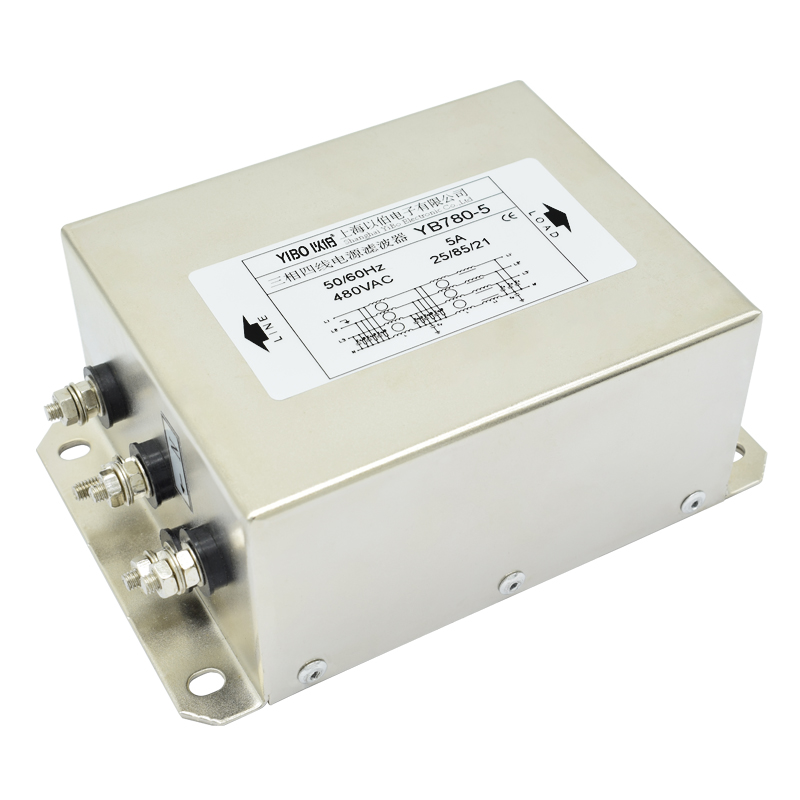

YB780 series three-section high-performance three-phase four-wire power supply filter
Short Description:
Rated voltage: 380/440VAC Rated current: 5 ~ 420A Advantages: three-phase four-wire power filter, three-section filter, excellent performance, broadband filter, 10KHz~30MHz excellent filtering effect, low leakage current, good common-mode attenuation. Application equipment: Suitable for inverter pow
YB780 series three-section high-performance three-phase four-wire power supply filter
Product introduction (This series of products can provide terminal station wiring)
Rated current: 5 to 420A Optional
Optional Special Medical Equipment (B Series)
Solder, bolt, terminal station extraction mode is optional (more than 300A for copper bar extraction)
Can be customized according to customer requirements
Characteristics and advantages
– Suitable for three-phase power supply system with neutral line
– YB780 series adopts three-stage filter circuit design composed of one-stage differential mode and two-stage common mode, with high performance
Three-phase four-wire filter
– Better common-mode and differential mode filtering effect in the range of 5KHz-30MHz
– Especially suitable for industrial sites with harsh electromagnetic environment
Application field
Machine tool equipment, inverter power supply, automation equipment, medical equipment and other three-phase four-wire with higher filtering requirements
Standard power electronic equipment
